5P49V5901B616NLGI8

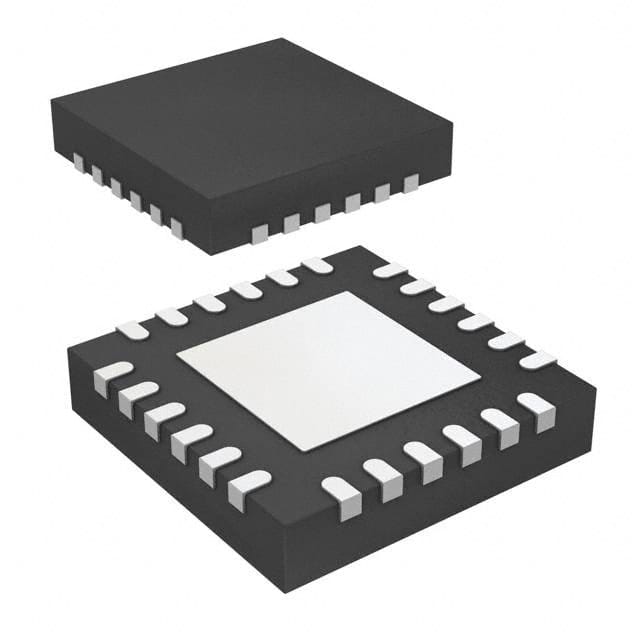

IC CLOCK GENERATOR 24VFQFPNManufacturer: Renesas Electronics Corporation
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Renesas Electronics Corporation's VersaClock® 5 series offers the 5P49V5901B616NLGI8, a versatile clock generator IC. This component, packaged in a 24-VFQFPN (4x4) with an exposed pad, supports multiple input types including HCSL, LVCMOS, LVDS, LVPECL, and Crystal. The device features selectable output frequencies up to 350MHz and provides a ratio of 2:4 (Input:Output). Its PLL capability, combined with support for HCSL, LVCMOS, LVDS, and LVPECL outputs, makes it suitable for demanding applications in networking, telecommunications, and data processing. The 5P49V5901B616NLGI8 operates within a temperature range of -40°C to 85°C (TA) and is supplied on tape and reel. Input voltage options range from 1.71V to 3.465V, accommodating various system power rails.
Additional Information
Series: VersaClock® 5RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | HCSL, LVCMOS, LVDS, LVPECL |
| Frequency - Max | 200MHz, 350MHz |
| Type | Clock Generator |
| Input | HCSL, LVCMOS, LVDS, LVPECL, Crystal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V |
| Ratio - Input:Output | 2:4 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 24-VFQFPN (4x4) |
| PLL | Yes |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
