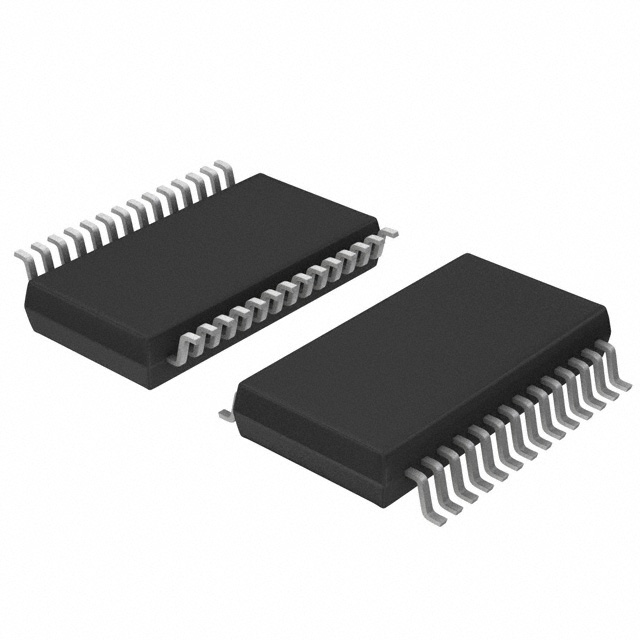

527R-01LF
IC FANOUT BUFFER 28QSOPManufacturer: Renesas Electronics Corporation
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Renesas Electronics Corporation 527R-01LF is a fanout buffer (distribution), zero delay buffer IC operating at up to 160MHz. This component features a 1:2 input to output ratio and a PLL for clock signal distribution. It is housed in a 28-QSOP package and designed for surface mounting. The 527R-01LF is suitable for applications requiring precise clock synchronization and distribution, commonly found in networking equipment and consumer electronics. It operates within a voltage range of 3V to 3.6V and has a temperature range of 0°C to 70°C. The device includes both divider and multiplier functionality.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Output | Clock |
| Frequency - Max | 160MHz |
| Type | Fanout Buffer (Distribution), Zero Delay Buffer |
| Input | Clock |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3V ~ 3.6V |
| Ratio - Input:Output | 1:2 |
| Differential - Input:Output | No/No |
| Supplier Device Package | 28-QSOP |
| PLL | Yes |
| Divider/Multiplier | Yes/Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
