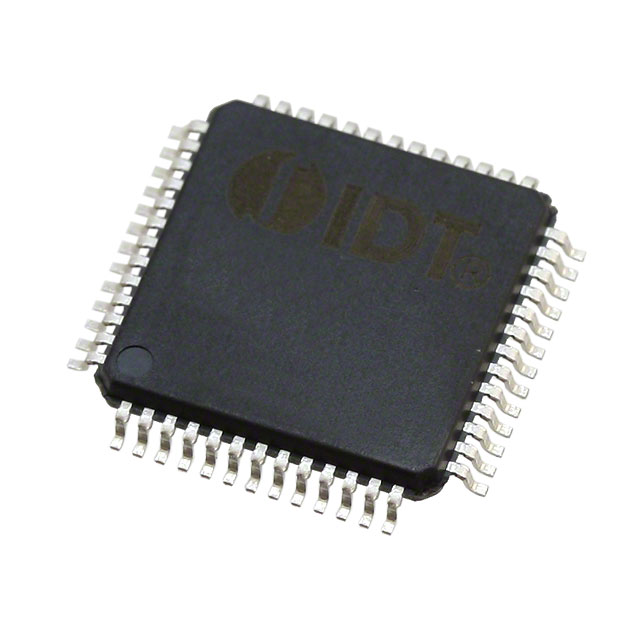

MC100ES6222AE
IC CLK BUFFER 2:15 3GHZ 52PTQFPManufacturer: Renesas Electronics Corporation
Categories: Clock Buffers, Drivers
Quality Control: Learn More
The Renesas Electronics Corporation MC100ES6222AE is a high-performance clock fanout buffer from the 100ES series. This device integrates clock distribution, division, multiplexing, and PLL functionalities. It supports differential ECL and PECL inputs, routing to 15 LVPECL outputs with a maximum frequency of 3 GHz. The input-to-output ratio is configurable from 2:15. Designed for surface mounting, the MC100ES6222AE is housed in a 52-PTQFP (10x10) package with an exposed pad for enhanced thermal management. Operating across a temperature range of -40°C to 110°C, this component is suitable for applications requiring high-speed clock synchronization, including telecommunications infrastructure, enterprise networking, and high-performance computing. The voltage supply range is 2.375V to 3.465V.
Additional Information
Series: 100ESRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 52-LQFP Exposed Pad |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | LVPECL |
| Type | Fanout Buffer (Distribution), Divider, Multiplexer, PLL |
| Input | ECL, PECL |
| Operating Temperature | -40°C ~ 110°C |
| Voltage - Supply | 2.375V ~ 3.465V |
| Ratio - Input:Output | 2:15 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 52-PTQFP (10x10) |
| Frequency - Max | 3 GHz |
