8T33FS6221EPGI8
IC CLK BUFFER 1:20 2GHZ 52PTQFPManufacturer: Renesas Electronics Corporation
Categories: Clock Buffers, Drivers
Quality Control: Learn More

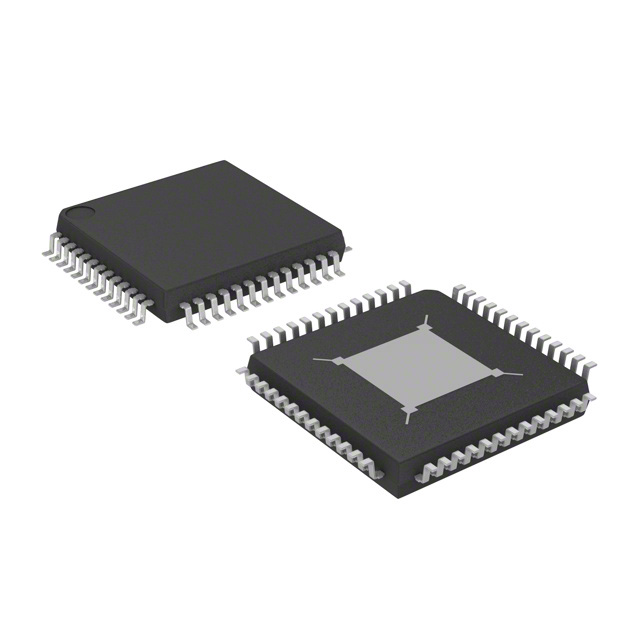

The Renesas Electronics Corporation 8T33FS6221EPGI8 is a high-performance clock fanout buffer designed for demanding applications. This component provides a 1:20 distribution ratio, supporting input clock frequencies up to 2 GHz. It accepts HSTL and PECL differential inputs and outputs PECL signals, ensuring signal integrity in high-speed systems. The device operates within a temperature range of -40°C to 85°C and requires a supply voltage between 2.375V to 2.625V and 3.135V to 3.465V. Packaged in a 52-PTQFP (10x10) with an exposed pad for enhanced thermal management, this surface-mount device is suitable for high-frequency signal distribution in telecommunications, networking, and data center infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 52-LQFP Exposed Pad |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | PECL |
| Type | Fanout Buffer (Distribution) |
| Input | HSTL, PECL |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.375V ~ 2.625V, 3.135V ~ 3.465V |
| Ratio - Input:Output | 1:20 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 52-PTQFP (10x10) |
| Frequency - Max | 2 GHz |
