8SLVD1212NLGI
IC CLK BUFFER 2:12 2GHZ 40VFQFPNManufacturer: Renesas Electronics Corporation
Categories: Clock Buffers, Drivers
Quality Control: Learn More

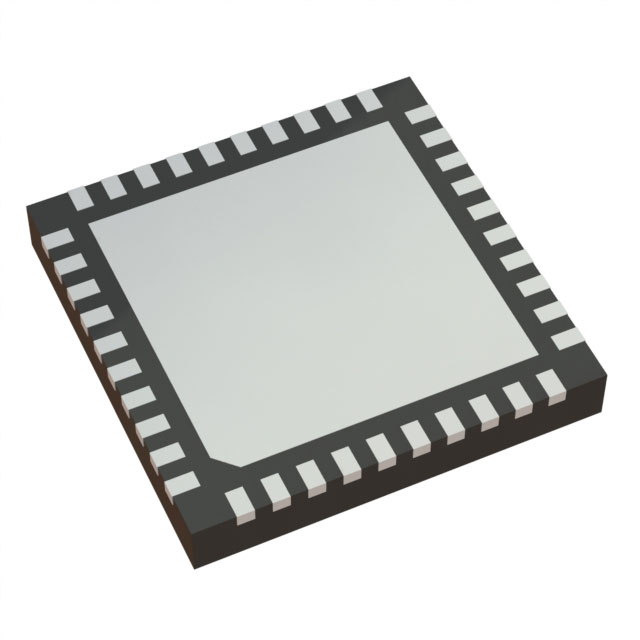

Renesas Electronics Corporation's 8SLVD1212NLGI is a high-performance clock fanout buffer designed for demanding applications. This 2:12 distribution buffer supports a maximum frequency of 2 GHz, offering versatile input compatibility with CML, LVCMOS, LVDS, LVPECL, and LVTTL standards. The output stage provides differential LVDS signaling, ensuring robust signal integrity. Engineered for surface mount assembly, the device is housed in a compact 40-VFQFPN (6x6) package with an exposed pad for enhanced thermal management. Operating within a temperature range of -40°C to 85°C, the 8SLVD1212NLGI requires a supply voltage of 2.375V to 2.625V. Its capabilities make it suitable for use in telecommunications, networking infrastructure, and high-speed computing systems.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 40-VFQFN Exposed Pad |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | LVDS |
| Type | Fanout Buffer (Distribution) |
| Input | CML, LVCMOS, LVDS, LVPECL, LVTTL |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.375V ~ 2.625V |
| Ratio - Input:Output | 2:12 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 40-VFQFPN (6x6) |
| Frequency - Max | 2 GHz |
