8545AG-01LF
IC CLK BUFFER 1:4 650MHZ 20TSSOPManufacturer: Renesas Electronics Corporation
Categories: Clock Buffers, Drivers
Quality Control: Learn More

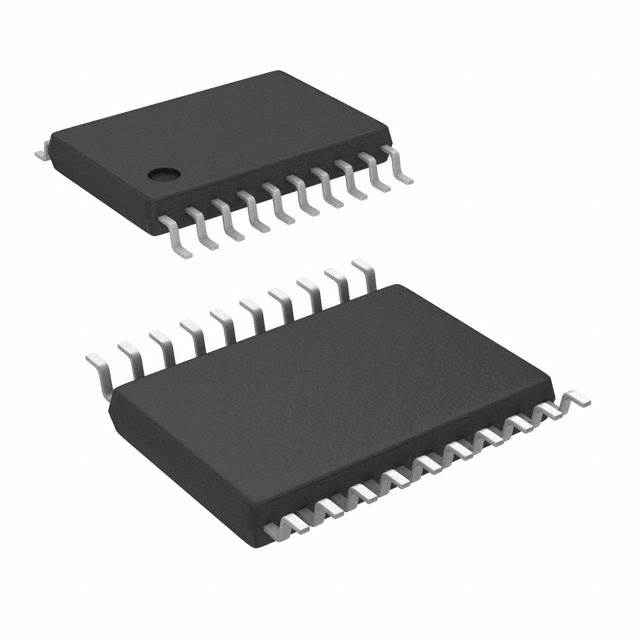

The Renesas Electronics Corporation 8545AG-01LF is a high-performance clock buffer designed for demanding applications. This fanout buffer (distribution) IC offers a 1:4 output ratio, capable of distributing clock signals up to 650 MHz. It features LVCMOS and LVTTL compatible inputs and LVDS outputs, ensuring robust signal integrity. The component is housed in a compact 20-TSSOP (0.173", 4.40mm Width) package, suitable for surface mount applications. Operating within a temperature range of 0°C to 70°C, and requiring a supply voltage between 3.135V and 3.465V, the 8545AG-01LF is utilized in sectors such as telecommunications, data networking, and high-speed computing where precise clock distribution is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | LVDS |
| Type | Fanout Buffer (Distribution) |
| Input | LVCMOS, LVTTL |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 3.135V ~ 3.465V |
| Ratio - Input:Output | 1:4 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 20-TSSOP |
| Frequency - Max | 650 MHz |
