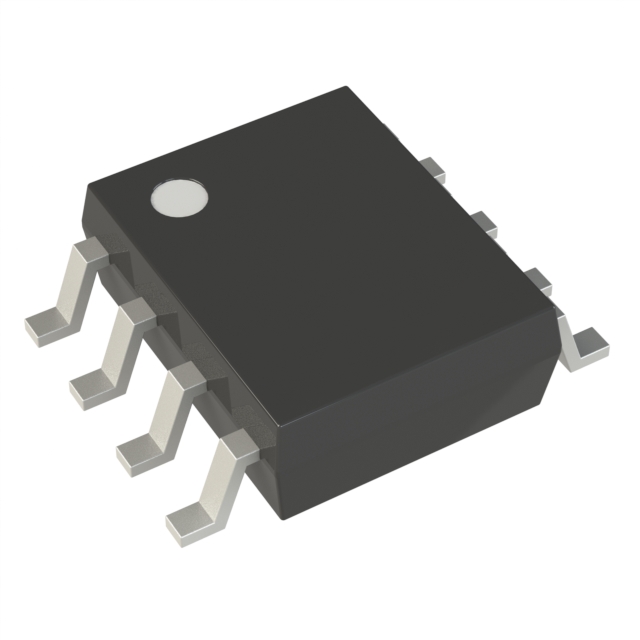

85411AMILF
IC CLK BUFFER 1:2 650MHZ 8SOICManufacturer: Renesas Electronics Corporation
Categories: Clock Buffers, Drivers
Quality Control: Learn More
Renesas Electronics Corporation's 85411AMILF is a high-performance clock fanout buffer designed for demanding applications. This 1:2 buffer supports differential inputs including HCSL, LVDS, LVHSTL, LVPECL, and SSTL, with a maximum operating frequency of 650 MHz. The output stage is configured for LVDS signaling. Housed in an 8-SOIC package, this surface-mount component is suitable for various industrial and telecommunications sectors. Its operating temperature range is -40°C to 85°C, and it operates within a voltage supply range of 2.97V to 3.63V. The 85411AMILF facilitates robust clock distribution in complex electronic systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | LVDS |
| Type | Fanout Buffer (Distribution) |
| Input | HCSL, LVDS, LVHSTL, LVPECL, SSTL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.97V ~ 3.63V |
| Ratio - Input:Output | 1:2 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 8-SOIC |
| Frequency - Max | 650 MHz |
