853S111BYILFT

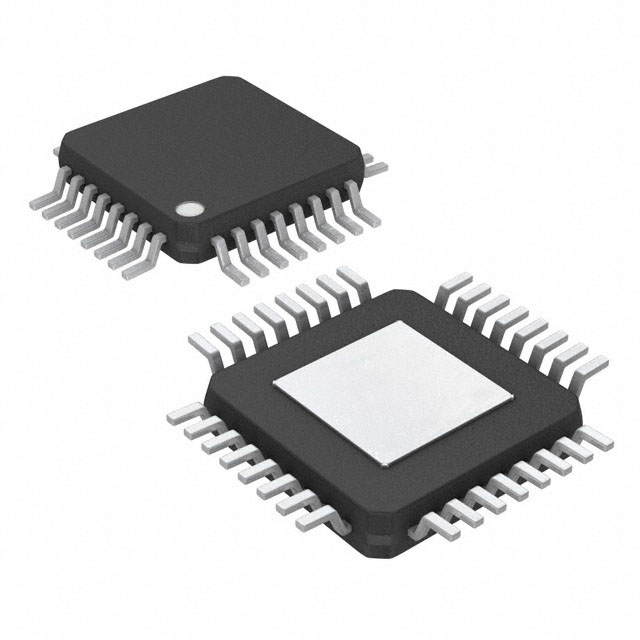

IC CLK BUF 2:10 2.5GHZ 32PTQFPManufacturer: Renesas Electronics Corporation
Categories: Clock Buffers, Drivers
Quality Control: Learn More
Renesas Electronics Corporation 853S111BYILFT is a 2:10 clock fanout buffer and multiplexer designed for high-speed signal distribution. This component operates at frequencies up to 2.5 GHz, supporting differential inputs including LVDS, LVPECL, and SSTL, and delivering ECL and LVPECL outputs. The device features a 2:10 input-to-output ratio and is housed in a 32-PTQFP-EP (7x7) package, suitable for surface mounting. The 853S111BYILFT is engineered for applications demanding precise clock synchronization and distribution in sectors such as telecommunications, networking, and high-performance computing. It operates within a voltage range of 2.375V to 3.8V and has an operating temperature range of -40°C to 85°C. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-TQFP Exposed Pad |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | ECL, LVPECL |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Input | LVDS, LVPECL, SSTL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.375V ~ 3.8V |
| Ratio - Input:Output | 2:10 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 32-PTQFP-EP (7x7) |
| Frequency - Max | 2.5 GHz |
