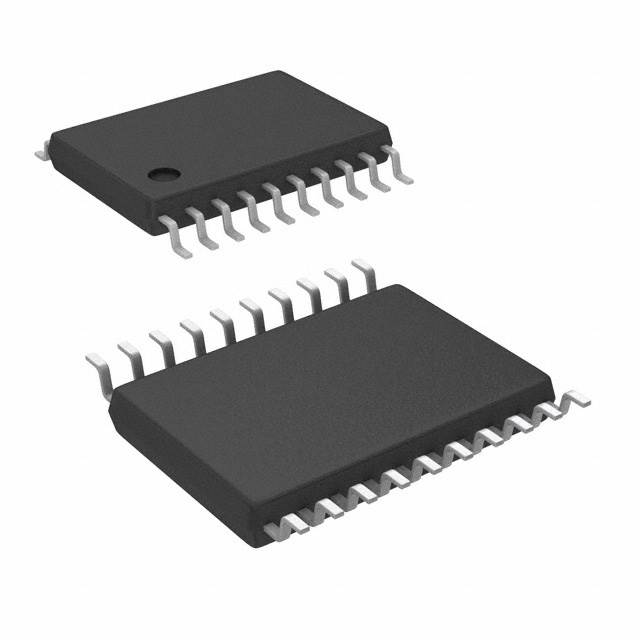

85214AGLF
IC CLK BUFFER 2:5 700MHZ 20TSSOPManufacturer: Renesas Electronics Corporation
Categories: Clock Buffers, Drivers
Quality Control: Learn More
The Renesas Electronics Corporation 85214AGLF is a high-performance clock fanout buffer and multiplexer IC. This component features a 2:5 input to output ratio, capable of distributing clock signals up to 700 MHz. It supports a wide array of input standards including HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL, and SSTL, with HSTL output compatibility. The 85214AGLF is housed in a 20-TSSOP package with a standard 0.173-inch (4.40mm) width, suitable for surface mount applications. Operating within a voltage range of 3.135V to 3.465V, this device is designed for demanding applications in telecommunications, networking, and high-speed computing.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | HSTL |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Input | HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL, SSTL |
| Operating Temperature | 0°C ~ 85°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Ratio - Input:Output | 2:5 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 20-TSSOP |
| Frequency - Max | 700 MHz |
