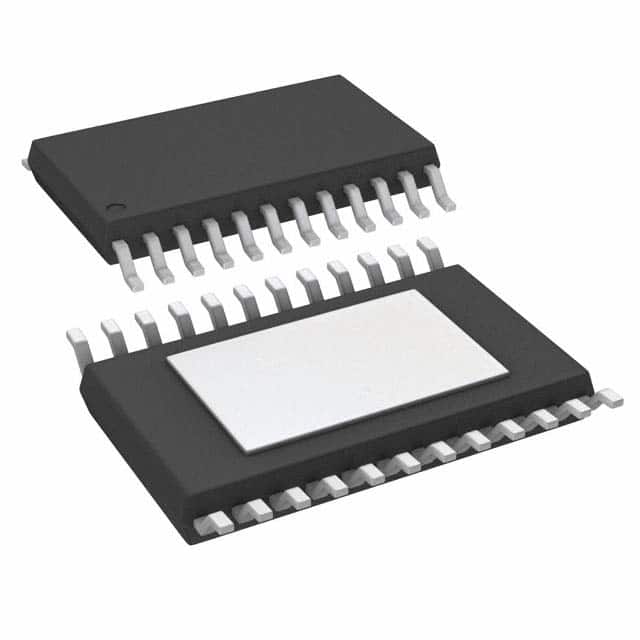

5T9304PGG
IC CLK BUFFER 2:4 450MHZ 24TSSOPManufacturer: Renesas Electronics Corporation
Categories: Clock Buffers, Drivers
Quality Control: Learn More
Renesas Electronics Corporation's TeraBuffer™ series 5T9304PGG is a high-performance clock fanout buffer designed for demanding applications. This 2:4 buffer supports a maximum frequency of 450 MHz, offering flexible input compatibility with CML, eHSTL, HSTL, LVDS, LVEPECL, LVPECL, and LVTTL standards. The output driver is LVDS, providing excellent signal integrity. Packaged in a 24-TSSOP (0.173", 4.40mm width) surface-mount configuration, this component operates within a voltage range of 2.3V to 2.7V and a temperature range of 0°C to 70°C. The 5T9304PGG is suitable for use in telecommunications, networking, and computing infrastructure where precise clock distribution is critical.
Additional Information
Series: TeraBuffer™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | LVDS |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Input | CML, eHSTL, HSTL, LVDS, LVEPECL, LVPECL, LVTTL |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 2.3V ~ 2.7V |
| Ratio - Input:Output | 2:4 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 24-TSSOP |
| Frequency - Max | 450 MHz |
