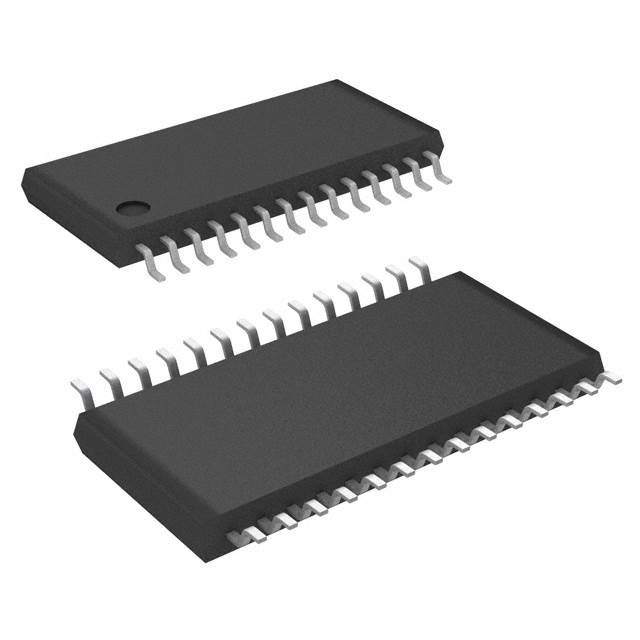

5T9050PGGI
IC CLK BUFFER 1:5 200MHZ 28TSSOPManufacturer: Renesas Electronics Corporation
Categories: Clock Buffers, Drivers
Quality Control: Learn More
Renesas Electronics Corporation 5T9050PGGI is a 1:5 clock fanout buffer designed for high-speed signal distribution. This surface-mount device operates with a maximum frequency of 200 MHz and supports LVTTL input signals. The output stages are compatible with LVCMOS and LVTTL standards. Packaged in a 28-TSSOP form factor, this component is suitable for applications requiring precise clocking and signal integrity. Its operating temperature range is -40°C to 85°C, making it a reliable choice for various industrial and consumer electronics applications. The 5T9050PGGI is a single-circuit buffer with a supply voltage range of 2.3V to 2.7V.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | LVCMOS, LVTTL |
| Type | Fanout Buffer (Distribution) |
| Input | LVTTL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.3V ~ 2.7V |
| Ratio - Input:Output | 1:5 |
| Differential - Input:Output | No/No |
| Supplier Device Package | 28-TSSOP |
| Frequency - Max | 200 MHz |
