2304NZGI-1LF
IC CLK BUFFER 1:4 140MHZ 8TSSOPManufacturer: Renesas Electronics Corporation
Categories: Clock Buffers, Drivers
Quality Control: Learn More
Renesas Electronics Corporation's 2304NZGI-1LF is a high-performance clock fanout buffer designed for precise clock distribution. This single-circuit device features a 1:4 output ratio, capable of distributing input signals up to a maximum frequency of 140 MHz. The buffer utilizes LVCMOS signaling for both input and output, ensuring compatibility with a wide range of digital systems.

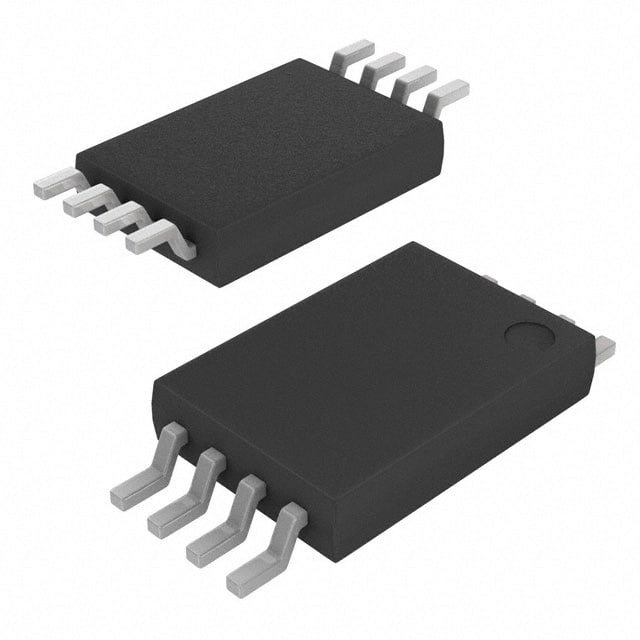

Housed in an 8-TSSOP package with a 4.40mm width, the 2304NZGI-1LF is surface-mount compatible, facilitating efficient board assembly. Its operating temperature range of -40°C to 85°C makes it suitable for demanding environments. This component is commonly employed in applications requiring reliable clock signal splitting, including telecommunications infrastructure, computing systems, and industrial automation. The device operates from a voltage supply range of 3V to 3.6V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-TSSOP (0.173"", 4.40mm Width) |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | LVCMOS |
| Type | Fanout Buffer (Distribution) |
| Input | LVCMOS |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Ratio - Input:Output | 1:4 |
| Differential - Input:Output | No/No |
| Supplier Device Package | 8-TSSOP |
| Frequency - Max | 140 MHz |
