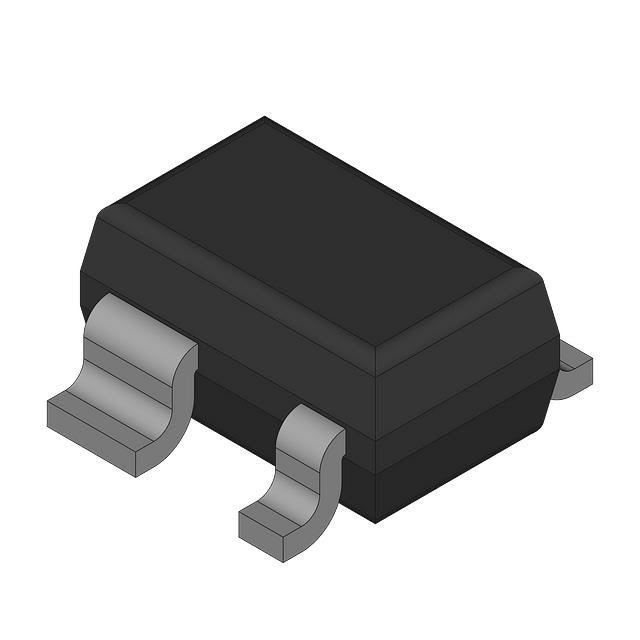

2SC5594XP-TL-H
SMALL SIGNAL BIPOLAR TRANSTR NPNManufacturer: Renesas Electronics Corporation
Categories: Bipolar RF Transistors
Quality Control: Learn More
RF Transistor NPN 4.5V 35mA 24GHz 100mW Surface Mount CMPAK-4
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SC-82A, SOT-343 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Gain | 18dB |
| Power - Max | 100mW |
| Current - Collector (Ic) (Max) | 35mA |
| Voltage - Collector Emitter Breakdown (Max) | 4.5V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 20mA, 2V |
| Frequency - Transition | 24GHz |
| Noise Figure (dB Typ @ f) | 1.2dB @ 1.8GHz |
| Supplier Device Package | CMPAK-4 |
| Grade | - |
| Qualification | - |
Request a Quote
