2SC5008-T1-A
SMALL SIGNAL BIPOLAR TRANSISTORManufacturer: Renesas Electronics Corporation
Categories: Bipolar RF Transistors
Quality Control: Learn More

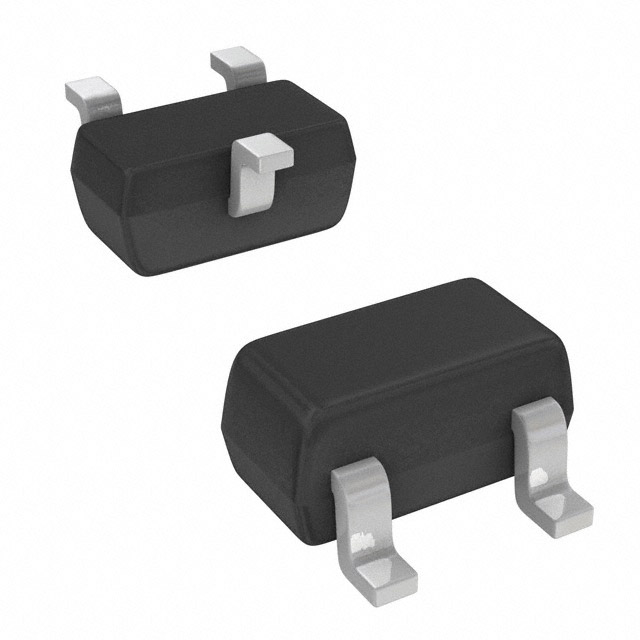

Renesas Electronics Corporation's 2SC5008-T1-A is an NPN bipolar RF transistor designed for high-frequency applications. This surface mount component, housed in a SOT-523 package, offers a collector-emitter breakdown voltage of 10V and a maximum collector current of 35mA. With a transition frequency of 8GHz and a power dissipation of 125mW, it is suitable for demanding RF circuitry. Key performance parameters include a minimum DC current gain of 80 at 5mA, 3V, a typical gain of 7.5dB, and a noise figure of 1.9dB at 2GHz. The operating temperature range extends to 150°C. This device finds application in wireless communications, radar systems, and other high-frequency signal amplification stages.
Additional Information
Series: -RoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOT-523 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Gain | 7.5dB |
| Power - Max | 125mW |
| Current - Collector (Ic) (Max) | 35mA |
| Voltage - Collector Emitter Breakdown (Max) | 10V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 3V |
| Frequency - Transition | 8GHz |
| Noise Figure (dB Typ @ f) | 1.9dB @ 2GHz |
| Supplier Device Package | SOT-523 |
