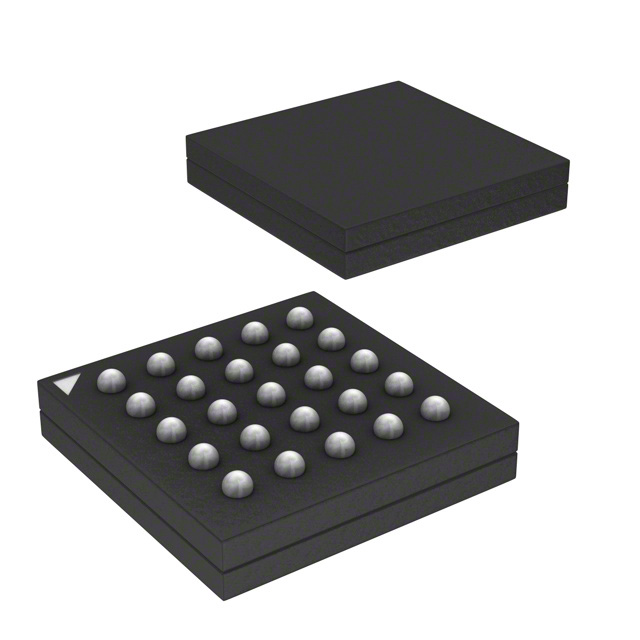

R2A20056BM#W0
IC BATT CHG LI-ION 1CELL 25BGAManufacturer: Renesas Electronics Corporation
Categories: Battery Chargers
Quality Control: Learn More
Renesas Electronics Corporation R2A20056BM-W0 is a single-cell lithium-ion battery charger IC. This device supports a maximum input voltage of 5.5V and features an I2C and USB interface for control and monitoring. The R2A20056BM-W0 offers robust fault protection, including over-temperature and over-voltage detection, ensuring safe and reliable charging operations. With a maximum charge current capability of 1A, it is suitable for applications requiring efficient power management. The component is supplied in a compact 25-WFBGA (2.17x2.27) package, mounted via surface mount technology, and is delivered on tape and reel. This charger IC finds application in portable electronics, consumer devices, and industrial equipment where battery management is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 25-WFBGA |
| Number of Cells | 1 |
| Mounting Type | Surface Mount |
| Interface | I2C, USB |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Battery Chemistry | Lithium Ion |
| Supplier Device Package | 25-WFBGA (2.17x2.27) |
| Charge Current - Max | 1A |
| Programmable Features | - |
| Fault Protection | Over Temperature, Over Voltage |
| Voltage - Supply (Max) | 5.5V |
| Battery Pack Voltage | 4.2V |
| Current - Charging | - |
