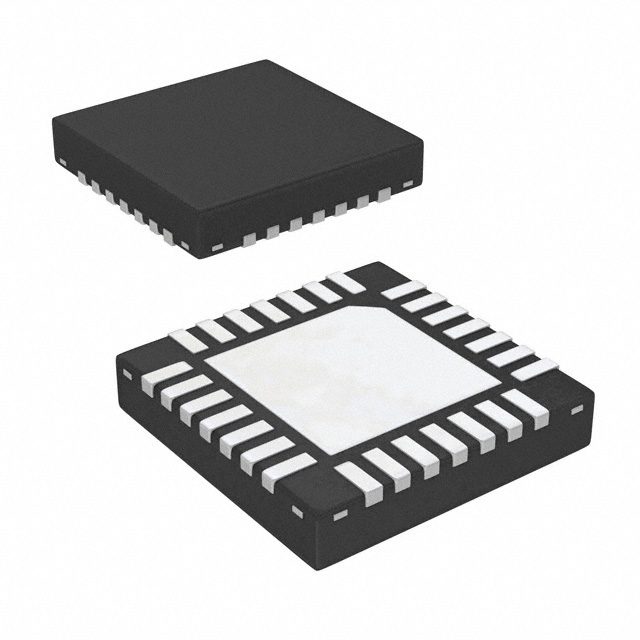

ISL9519HRTZ-T
IC BATT CHG LI-ION 1-3CEL 28TQFNManufacturer: Renesas Electronics Corporation
Categories: Battery Chargers
Quality Control: Learn More
The Renesas Electronics Corporation ISL9519HRTZ-T is a highly integrated battery charger IC designed for Lithium-Ion battery packs. This 28-TQFN (4x4) packaged device supports 1 to 3 cell configurations and offers a maximum charge current of 8A. Featuring an I2C interface for advanced control and monitoring, it provides robust fault protection including short circuit detection. The ISL9519HRTZ-T is suitable for surface mount applications and operates across a temperature range of -10°C to 100°C. Its high input voltage capability of up to 22V makes it a versatile solution for power-intensive applications found in computing, industrial, and automotive systems. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-WFQFN Exposed Pad |
| Number of Cells | 1 ~ 3 |
| Mounting Type | Surface Mount |
| Interface | I2C |
| Operating Temperature | -10°C ~ 100°C (TA) |
| Battery Chemistry | Lithium Ion |
| Supplier Device Package | 28-TQFN (4x4) |
| Charge Current - Max | 8A |
| Programmable Features | - |
| Fault Protection | Short Circuit |
| Voltage - Supply (Max) | 22V |
| Battery Pack Voltage | - |
| Current - Charging | - |
