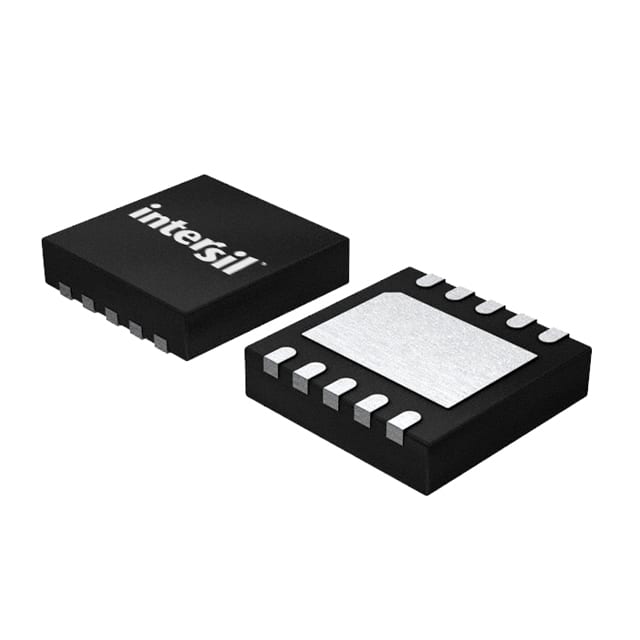

ISL9301IRZ-T
IC BATT CHG LI-ION 1CELL 10DFNManufacturer: Renesas Electronics Corporation
Categories: Battery Chargers
Quality Control: Learn More
The Renesas Electronics Corporation ISL9301IRZ-T is a single-cell Lithium Ion/Polymer battery charger IC. This device is designed for efficient charging with a maximum charge current of 450mA, configurable via a programmable constant current setting. It features over-temperature fault protection to ensure safe operation. The ISL9301IRZ-T supports a battery pack voltage of 4.2V and operates from a supply voltage up to 10V. Its programmable timer function adds further control over the charging cycle. Packaged in a 10-DFN (3x3) surface-mount configuration and supplied on tape and reel (TR), this component is suitable for applications in portable electronics and power management systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN Exposed Pad |
| Number of Cells | 1 |
| Mounting Type | Surface Mount |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Battery Chemistry | Lithium Ion/Polymer |
| Supplier Device Package | 10-DFN (3x3) |
| Charge Current - Max | 450mA |
| Programmable Features | Timer |
| Fault Protection | Over Temperature |
| Voltage - Supply (Max) | 10V |
| Battery Pack Voltage | 4.2V |
| Current - Charging | Constant - Programmable |
