ISL9214AIRZ-T
IC BATT CHG LI-ION 1CELL 10DFNManufacturer: Renesas Electronics Corporation
Categories: Battery Chargers
Quality Control: Learn More

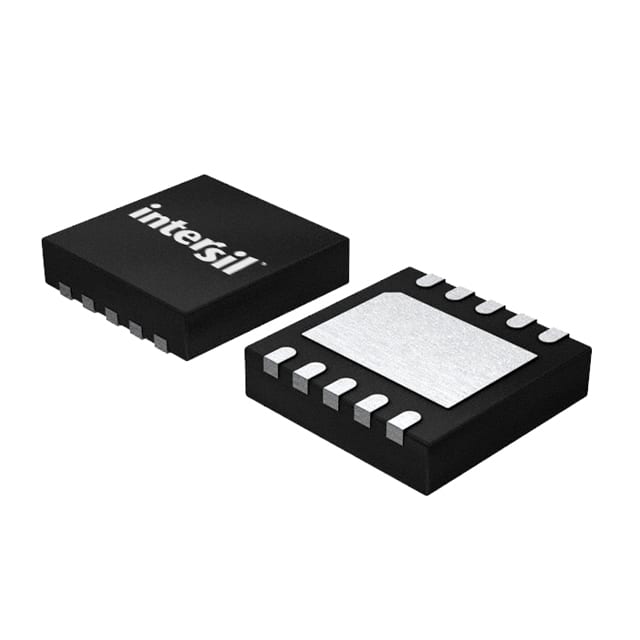

Renesas Electronics Corporation ISL9214AIRZ-T is a single-cell lithium-ion/polymer battery charger IC. This component features a 10-DFN (3x3) exposed pad package, designed for surface mount applications and supplied on tape and reel. It offers a maximum charge current of 1A and supports constant, programmable charging with over-temperature fault protection. The ISL9214AIRZ-T interfaces via USB and is rated for operating temperatures from -40°C to 85°C. This device is suitable for applications in portable electronics, industrial equipment, and automotive systems requiring efficient battery management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN Exposed Pad |
| Number of Cells | 1 |
| Mounting Type | Surface Mount |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Battery Chemistry | Lithium Ion/Polymer |
| Supplier Device Package | 10-DFN (3x3) |
| Charge Current - Max | 1A |
| Programmable Features | - |
| Fault Protection | Over Temperature |
| Voltage - Supply (Max) | 24V |
| Battery Pack Voltage | 4.2V |
| Current - Charging | Constant - Programmable |
