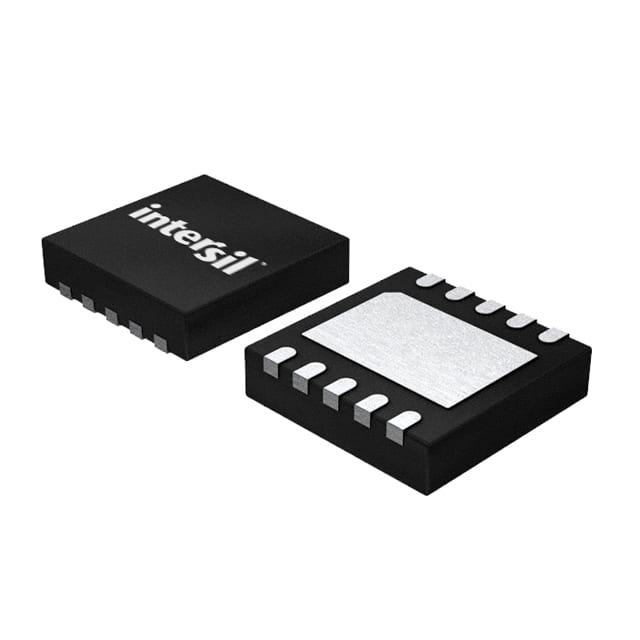

ISL9203ACRZ
IC BATT CHG LI-ION 1CELL 10DFNManufacturer: Renesas Electronics Corporation
Categories: Battery Chargers
Quality Control: Learn More
The Renesas Electronics Corporation ISL9203ACRZ is a single-cell lithium-ion battery charger IC. This component is housed in a compact 10-DFN (3x3) package, suitable for surface mount applications. It offers a maximum charge current of 1.5A with constant current, programmable charging capabilities. The ISL9203ACRZ supports a battery pack voltage of 4.2V and operates from a supply voltage up to 6.5V. Designed for efficient power management, this charger IC is commonly utilized in portable electronics, consumer devices, and industrial control systems. Its robust design and reliable performance make it an ideal choice for demanding battery management solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-VFDFN Exposed Pad |
| Number of Cells | 1 |
| Mounting Type | Surface Mount |
| Interface | - |
| Operating Temperature | -20°C ~ 70°C (TA) |
| Battery Chemistry | Lithium Ion |
| Supplier Device Package | 10-DFN (3x3) |
| Charge Current - Max | 1.5A |
| Programmable Features | - |
| Fault Protection | - |
| Voltage - Supply (Max) | 6.5V |
| Battery Pack Voltage | 4.2V |
| Current - Charging | Constant - Programmable |
