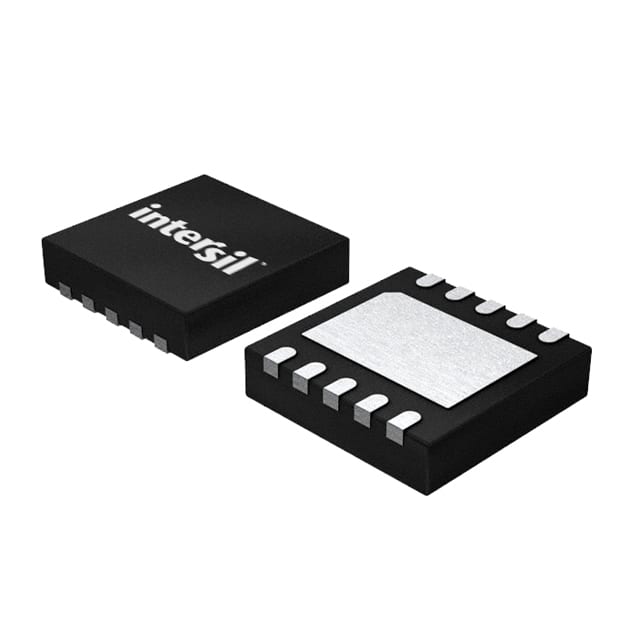

ISL78693ARZ-T7A
IC BATT CHG LI-ION 1CELL 10DFNManufacturer: Renesas Electronics Corporation
Categories: Battery Chargers
Quality Control: Learn More
The Renesas Electronics Corporation ISL78693ARZ-T7A is a single-cell Lithium Ion/Polymer battery charger IC. This AEC-Q100 qualified component is designed for automotive applications and features a maximum charge current of 1A with programmable constant current charging. The device offers over-temperature fault protection and is housed in a 10-DFN (3x3) package with an exposed pad, suitable for surface-mount assembly. It operates within a temperature range of -40°C to 85°C and has a maximum supply voltage of 5.5V. The ISL78693ARZ-T7A includes timer programmability for charging control. It is supplied in tape and reel packaging. This charger IC is utilized in automotive systems such as infotainment, advanced driver-assistance systems (ADAS), and battery management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN Exposed Pad |
| Number of Cells | 1 |
| Mounting Type | Surface Mount |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Battery Chemistry | Lithium Ion/Polymer |
| Supplier Device Package | 10-DFN (3x3) |
| Charge Current - Max | 1A |
| Programmable Features | Timer |
| Fault Protection | Over Temperature |
| Voltage - Supply (Max) | 5.5V |
| Battery Pack Voltage | - |
| Current - Charging | Constant - Programmable |
| Grade | Automotive |
| Qualification | AEC-Q100 |
