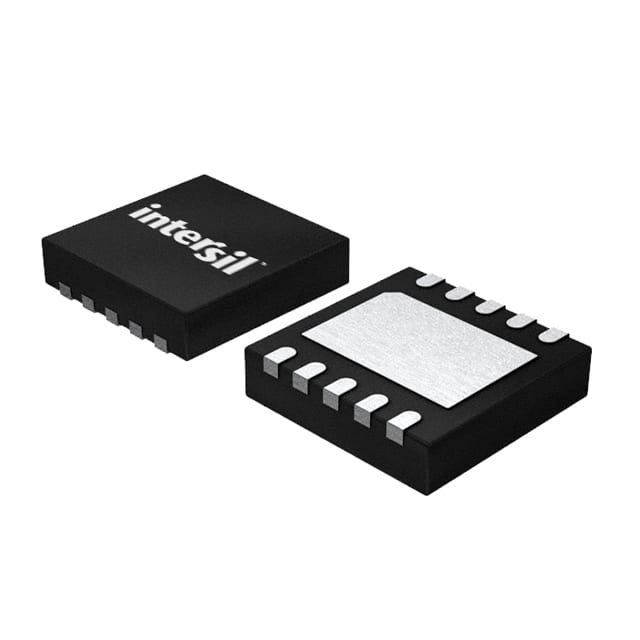

ISL78692-1CR3Z-T7A
IC BATT CHG LI-ION 1CELL 10DFNManufacturer: Renesas Electronics Corporation
Categories: Battery Chargers
Quality Control: Learn More
Renesas Electronics Corporation's ISL78692-1CR3Z-T7A is a single-cell lithium-ion/polymer battery charger IC. This automotive-grade component, qualified to AEC-Q100, features a 10-DFN (3x3) package with an exposed pad for enhanced thermal performance. The ISL78692-1CR3Z-T7A supports a maximum charge current of 1A and offers constant charging with programmable current control. It includes over-temperature fault protection for robust operation. The IC is designed for a 4.1V battery pack voltage and accepts USB input. Programmable features include a timer function. This device is suitable for surface mount applications within the automotive industry, operating across a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN Exposed Pad |
| Number of Cells | 1 |
| Mounting Type | Surface Mount |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Battery Chemistry | Lithium Ion/Polymer |
| Supplier Device Package | 10-DFN (3x3) |
| Charge Current - Max | 1A |
| Programmable Features | Timer |
| Fault Protection | Over Temperature |
| Voltage - Supply (Max) | 5.5V |
| Battery Pack Voltage | 4.1V |
| Current - Charging | Constant - Programmable |
| Grade | Automotive |
| Qualification | AEC-Q100 |
