ISL6294IRZ-T
IC BATT CHG LI-ION 1CELL 8DFNManufacturer: Renesas Electronics Corporation
Categories: Battery Chargers
Quality Control: Learn More

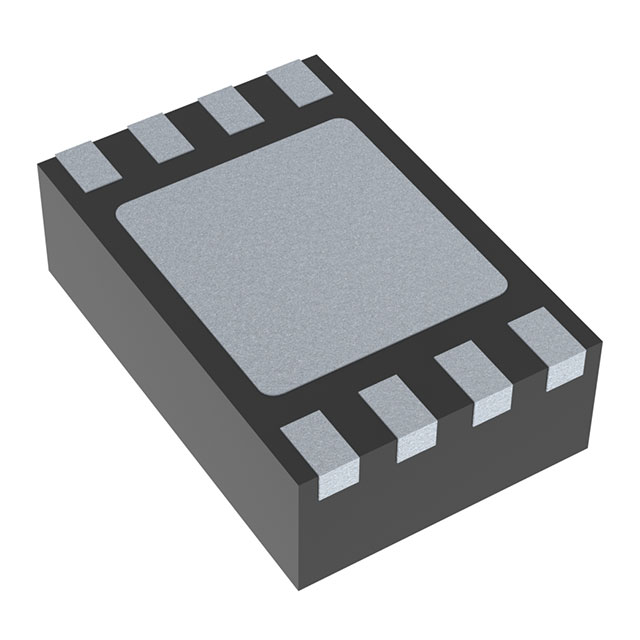

Renesas Electronics Corporation ISL6294IRZ-T is a single-cell lithium-ion/polymer battery charger IC. This device is housed in an 8-DFN (2x3) package and is supplied on tape and reel. The ISL6294IRZ-T offers programmable constant current charging up to a maximum of 900mA, with a maximum supply voltage of 6.5V and a battery pack voltage of 4.2V. It incorporates over-temperature fault protection. This surface-mount component is suitable for applications in portable electronics and power management systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VFDFN Exposed Pad |
| Number of Cells | 1 |
| Mounting Type | Surface Mount |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Battery Chemistry | Lithium Ion/Polymer |
| Supplier Device Package | 8-DFN (2x3) |
| Charge Current - Max | 900mA |
| Programmable Features | - |
| Fault Protection | Over Temperature |
| Voltage - Supply (Max) | 6.5V |
| Battery Pack Voltage | 4.2V |
| Current - Charging | Constant - Programmable |
