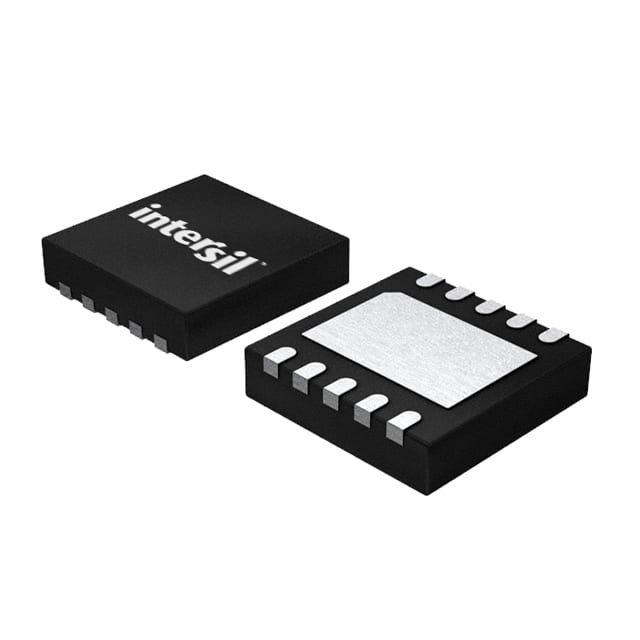

ISL6292-1CR3Z
IC BATT CHG LI-ION 1CELL 10DFNManufacturer: Renesas Electronics Corporation
Categories: Battery Chargers
Quality Control: Learn More
Renesas Electronics Corporation ISL6292-1CR3Z is a single-cell lithium-ion/polymer battery charger IC designed for efficient power management. This component features a programmable constant current charging capability with a maximum charge current of 2A. The device operates with a supply voltage up to 6.5V and supports a battery pack voltage of 4.1V. Its interface is USB, facilitating straightforward integration into portable electronics and power systems. The ISL6292-1CR3Z is housed in a 10-DFN (3x3) surface-mount package, suitable for compact designs. This charger IC is commonly utilized in consumer electronics, mobile devices, and other applications requiring robust battery charging solutions. Operating temperature ranges from -20°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-VFDFN Exposed Pad |
| Number of Cells | 1 |
| Mounting Type | Surface Mount |
| Interface | USB |
| Operating Temperature | -20°C ~ 70°C (TA) |
| Battery Chemistry | Lithium Ion/Polymer |
| Supplier Device Package | 10-DFN (3x3) |
| Charge Current - Max | 2A |
| Programmable Features | - |
| Fault Protection | - |
| Voltage - Supply (Max) | 6.5V |
| Battery Pack Voltage | 4.1V |
| Current - Charging | Constant - Programmable |
