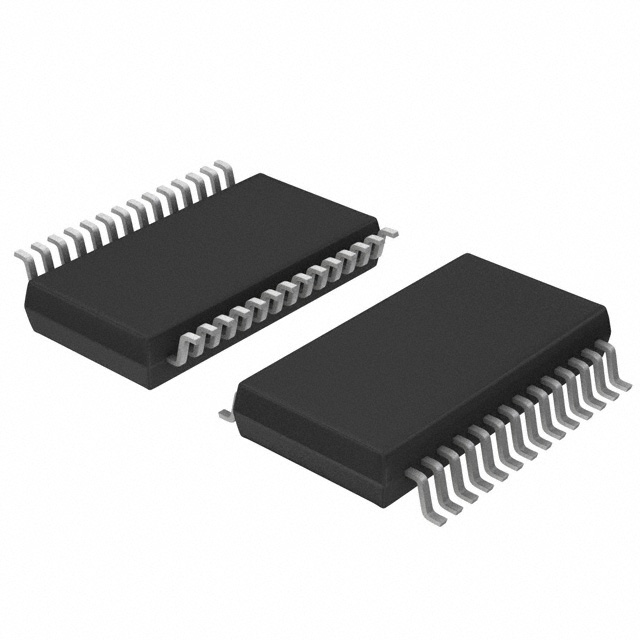

ISL6256HAZ
IC BATT CHG LI-ION 2-4CEL 28QSOPManufacturer: Renesas Electronics Corporation
Categories: Battery Chargers
Quality Control: Learn More
The Renesas Electronics Corporation ISL6256HAZ is a highly integrated battery charger IC designed for 2 to 4 cell Lithium Ion/Polymer battery packs. This device supports a maximum battery pack voltage of 17.64V and offers a maximum charge current of 2.6A, with constant current programming for flexible charging profiles. Integrated fault protection includes over-temperature, over-voltage, and short-circuit detection, enhancing system reliability. The ISL6256HAZ is supplied in a 28-SSOP/QSOP package suitable for surface mounting, with a package width of 3.90mm. Its operating temperature range is -10°C to 100°C (TA), and it operates from a supply voltage up to 25V. This component is commonly utilized in power management solutions for various portable electronic devices and industrial equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-SSOP (0.154"", 3.90mm Width) |
| Number of Cells | 2 ~ 4 |
| Mounting Type | Surface Mount |
| Interface | - |
| Operating Temperature | -10°C ~ 100°C (TA) |
| Battery Chemistry | Lithium Ion/Polymer |
| Supplier Device Package | 28-SSOP/QSOP |
| Charge Current - Max | 2.6A |
| Programmable Features | - |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit |
| Voltage - Supply (Max) | 25V |
| Battery Pack Voltage | 17.64V (Max) |
| Current - Charging | Constant - Programmable |
