ISL99201IRTAZ-T
IC AMP CLASS D MONO 1.4W 8TDFNManufacturer: Renesas Electronics Corporation
Categories: Audio Amplifiers
Quality Control: Learn More
The Renesas Electronics Corporation ISL99201IRTAZ-T is a high-efficiency, mono Class D amplifier IC. This component is housed in an 8-TDFN (3x3) package, designed for surface mount applications. It delivers 1.4W into an 8-ohm load with a supply voltage range of 2.4V to 5.5V. Key features include differential inputs, depop functionality, and robust protection against short-circuit and thermal events. The integrated shutdown pin provides further control. This amplifier is suitable for various audio systems, including portable electronics and consumer audio products. The ISL99201IRTAZ-T is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Output Type | 1-Channel (Mono) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.4V ~ 5.5V |
| Max Output Power x Channels @ Load | 1.4W x 1 @ 8Ohm |
| Supplier Device Package | 8-TDFN (3x3) |
Request a Quote
Clients Also Buy

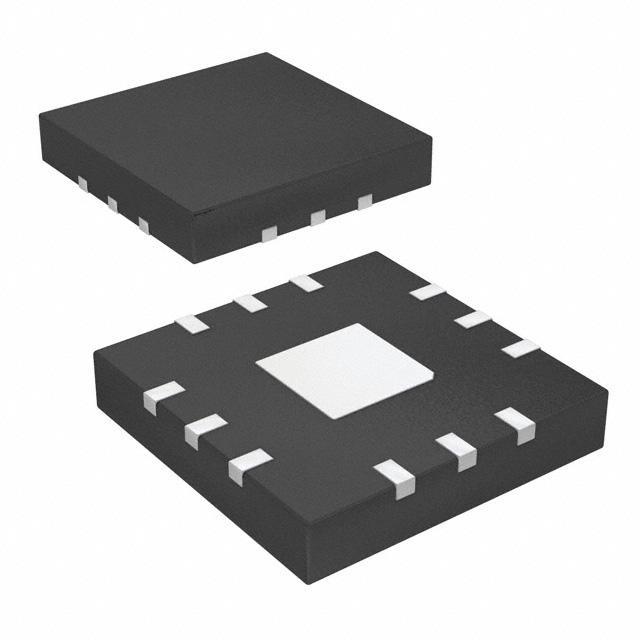

ISL99202IRTAZ-T
