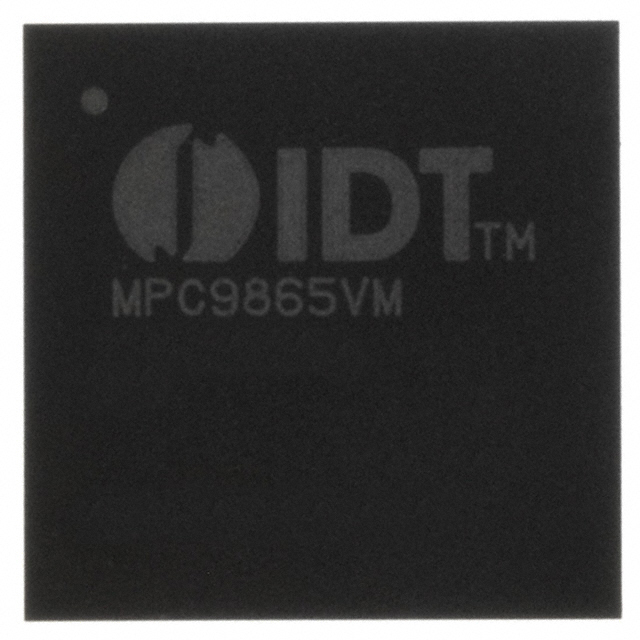

MPC9865VMR2
IC PLL CLOCK GENERATOR 100MAPBGAManufacturer: Renesas Electronics Corporation
Categories: Application Specific Clock/Timing
Quality Control: Learn More
Renesas Electronics Corporation MPC9865VMR2 is a high-performance clock generator and multiplexer IC. This device is engineered for demanding applications within the networking and telecommunications sectors, notably supporting PowerQUICC III architectures. It features a Phase-Locked Loop (PLL) for precise frequency synthesis. The MPC9865VMR2 accepts multiple input standards including LVCMOS, LVPECL, and crystal inputs, offering flexibility in system design. It provides a single LVCMOS output capable of generating frequencies up to 200MHz. The input-to-output ratio is configurable at 3:10. Packaged in a 100-CABGA (11x11) format and supplied on tape and reel, it is designed for surface-mount assembly. Operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 100-LBGA |
| Mounting Type | Surface Mount |
| Output | LVCMOS |
| Frequency - Max | 200MHz |
| Input | LVCMOS, LVPECL, Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Main Purpose | Networking, PowerQUICC III, Telecom |
| Ratio - Input:Output | 3:10 |
| Differential - Input:Output | Yes/No |
| Supplier Device Package | 100-CABGA (11x11) |
| PLL | Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
