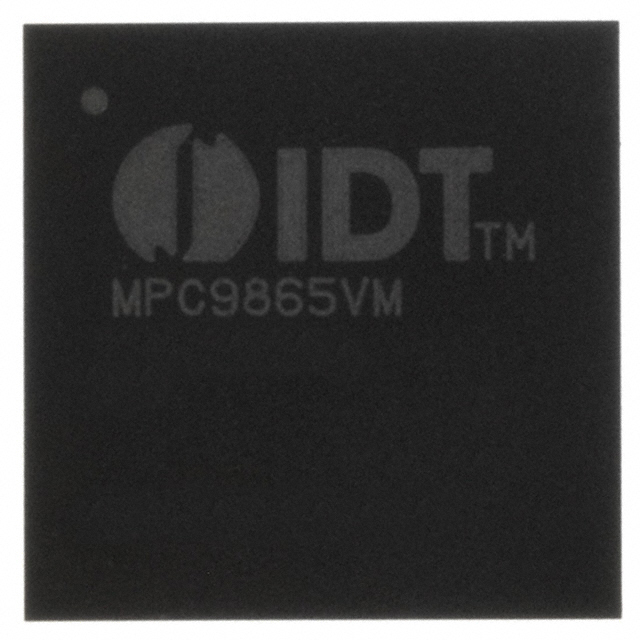

MPC9865VM
CLOCK GENERATOR, 200MHZ, CMOS, PManufacturer: Renesas Electronics Corporation
Categories: Application Specific Clock/Timing
Quality Control: Learn More
Renesas Electronics Corporation MPC9865VM is a high-performance clock generator IC designed for demanding networking and telecommunications applications. This component, operating up to 200MHz, features a CMOS technology and includes a Phase-Locked Loop (PLL) for precise frequency synthesis. The MPC9865VM supports multiple input types, including LVCMOS, LVPECL, and crystal, and provides an LVCMOS output. Its primary function is to serve as a clock/frequency generator and multiplexer, specifically targeting PowerQUICC III processor systems. The device is packaged in a 100-CABGA (11x11) and is designed for surface mounting, operating within a temperature range of -40°C to 85°C. The voltage supply range is 3.135V to 3.465V. The input-to-output ratio is configurable as 3:10.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-LBGA |
| Mounting Type | Surface Mount |
| Output | LVCMOS |
| Frequency - Max | 200MHz |
| Input | LVCMOS, LVPECL, Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Main Purpose | Networking, PowerQUICC III, Telecom |
| Ratio - Input:Output | 3:10 |
| Differential - Input:Output | Yes/No |
| Supplier Device Package | 100-CABGA (11x11) |
| PLL | Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
