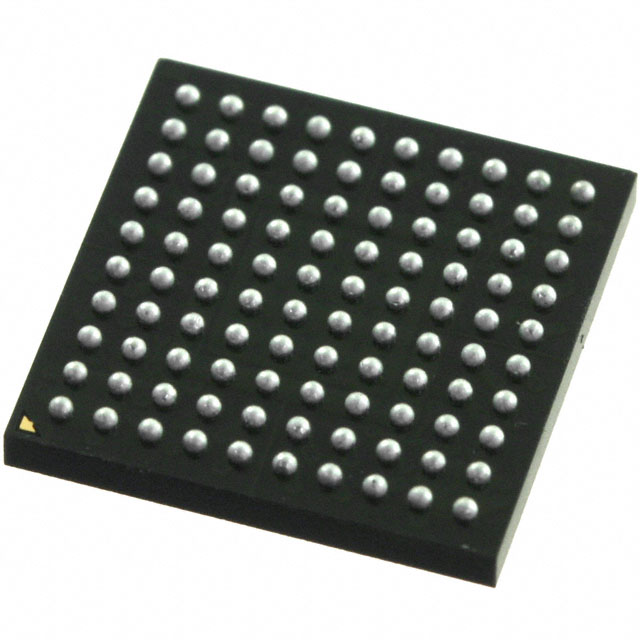

MPC9850VM
IC PLL CLOCK GENERATOR 100MAPBGAManufacturer: Renesas Electronics Corporation
Categories: Application Specific Clock/Timing
Quality Control: Learn More
The Renesas Electronics Corporation MPC9850VM is a high-performance clock generator and frequency synthesizer designed for demanding networking and telecommunications applications. This multiplexer IC features a maximum operating frequency of 500MHz, supporting a 3:11 input-to-output ratio. It accepts inputs from LVCMOS, LVPECL, and crystal sources, and provides outputs in LVCMOS and LVDS formats. The MPC9850VM incorporates Phase-Locked Loop (PLL) technology for precise clock generation and distribution. Its primary applications include PowerQUICC III platforms and general telecom clocking solutions. The component is supplied in a 100-CABGA (11x11) surface mount package and operates within a temperature range of -40°C to 85°C. Voltage supply requirements are between 3.135V and 3.465V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-LBGA |
| Mounting Type | Surface Mount |
| Output | LVCMOS, LVDS |
| Frequency - Max | 500MHz |
| Input | LVCMOS, LVPECL, Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Main Purpose | Networking, PowerQUICC III, Telecom |
| Ratio - Input:Output | 3:11 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 100-CABGA (11x11) |
| PLL | Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
