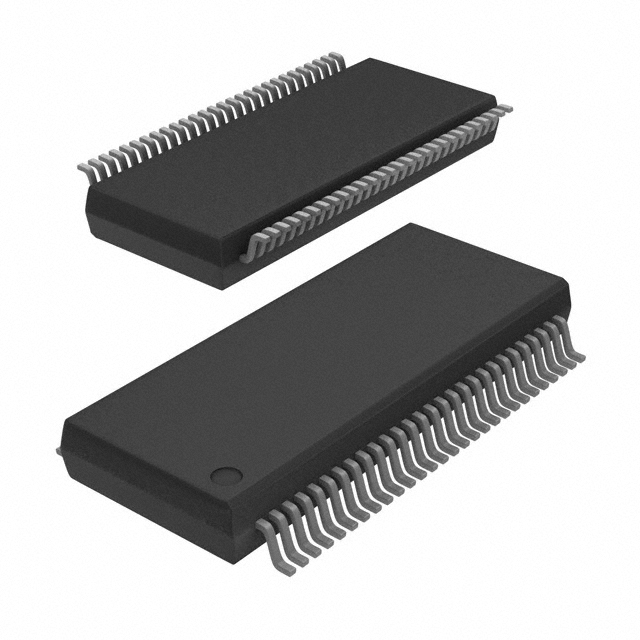

ICS953201BFT
IC SYSTEM CLK CHIP AMD-K8 56SSOPManufacturer: Renesas Electronics Corporation
Categories: Application Specific Clock/Timing
Quality Control: Learn More
The Renesas Electronics Corporation TCH™ series ICS953201BFT is a PCI Express (PCIe) timing control hub, serving as a PC clock IC. This component, supplied in a 56-SSOP package, operates at a 3.3V supply voltage and is designed for surface mount applications. The ICS953201BFT is primarily utilized in computing systems requiring precise clock generation for PCIe interfaces. Its role as a timing control hub ensures reliable signal integrity for high-speed data transfer. Common applications for this device include desktop and server motherboards, as well as other computing platforms where robust PCIe clocking is a critical design parameter. The operating temperature range is 0°C to 70°C.
Additional Information
Series: TCH™RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-BSSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Output | Clock |
| Frequency - Max | - |
| Input | - |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3.3V |
| Main Purpose | PCI Express (PCIe), Timing Control Hub™ |
| Ratio - Input:Output | - |
| Differential - Input:Output | - |
| Supplier Device Package | 56-SSOP |
| PLL | No |
| Programmable | Not Verified |
