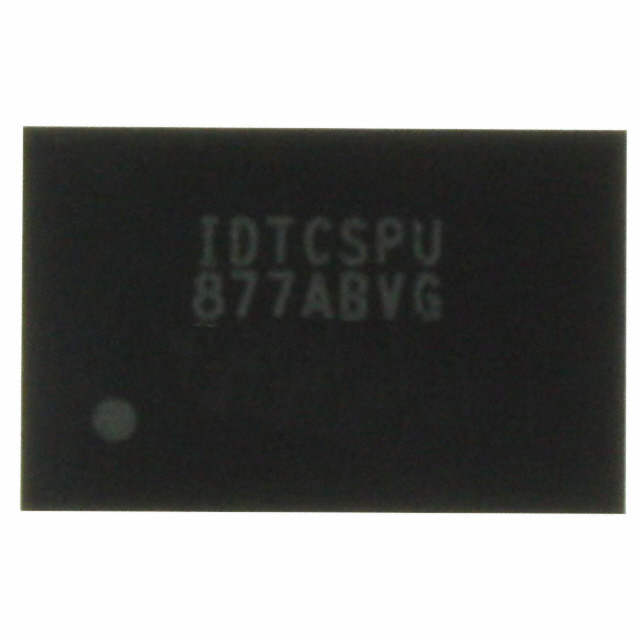

CSPU877ABVG
IC SDRAM CLK DVR 1:10 52-VFBGAManufacturer: Renesas Electronics Corporation
Categories: Application Specific Clock/Timing
Quality Control: Learn More
Renesas Electronics Corporation CSPU877ABVG is a high-performance SDRAM clock buffer and driver designed for memory systems, particularly DDR2 applications. This zero-delay buffer features a 1:10 input-to-output ratio, capable of distributing a clock signal to up to ten outputs with minimal latency. Operating at a maximum frequency of 340MHz, it incorporates a Phase-Locked Loop (PLL) to ensure precise clock synchronization. The differential input and output capabilities facilitate robust signal integrity in demanding environments. Packaged in a 52-CABGA (4.5x7.0) for surface mounting, this component is suitable for applications in computing, networking, and telecommunications. The device operates within a supply voltage range of 1.7V to 1.9V and is rated for operation between 0°C and 70°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 52-VFBGA |
| Mounting Type | Surface Mount |
| Output | Clock |
| Frequency - Max | 340MHz |
| Input | Clock |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 1.7V ~ 1.9V |
| Main Purpose | Memory, DDR2, SDRAM |
| Ratio - Input:Output | 1:10 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 52-CABGA (4.5x7.0) |
| PLL | Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
