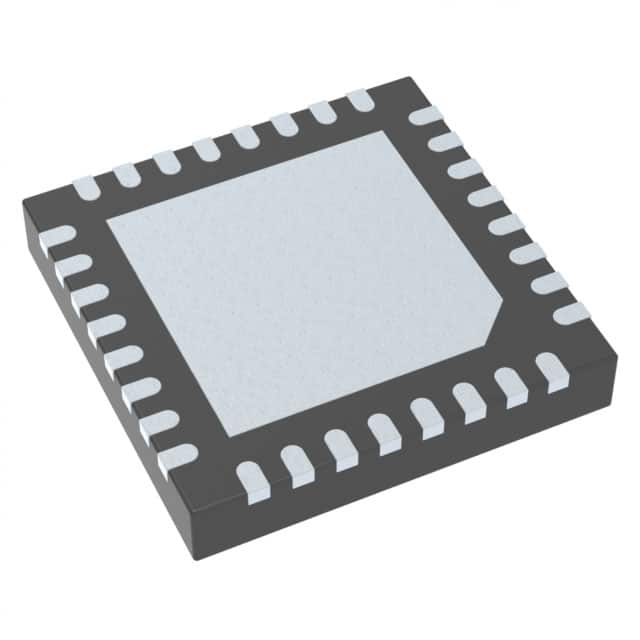

9FGL0441CKILF
IC CLK GENERATOR PCIE 32VFQFPNManufacturer: Renesas Electronics Corporation
Categories: Application Specific Clock/Timing
Quality Control: Learn More
Renesas Electronics Corporation's 9FGL0441CKILF is a PCI Express (PCIe) clock generator IC. This component features a single output with a maximum frequency of 25MHz, designed to provide precise clock signals for PCIe interfaces. The device utilizes a Phase-Locked Loop (PLL) for stable frequency generation and offers a 1:4 input-to-output ratio. Packaged in a 32-VFQFPN (5x5) with an exposed pad for enhanced thermal performance, it supports surface mount assembly. The operating temperature range is -40°C to 85°C. This clock generator is suitable for applications requiring reliable PCIe clocking, including networking equipment and high-performance computing systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | Clock |
| Frequency - Max | 25MHz |
| Input | Clock |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 3.135V ~ 3.465V |
| Main Purpose | PCI Express (PCIe) |
| Ratio - Input:Output | 1:4 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 32-VFQFPN (5x5) |
| PLL | Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
