9FGL0241CKILF
IC CLK GENERATOR PCIE 24VFQFPNManufacturer: Renesas Electronics Corporation
Categories: Application Specific Clock/Timing
Quality Control: Learn More

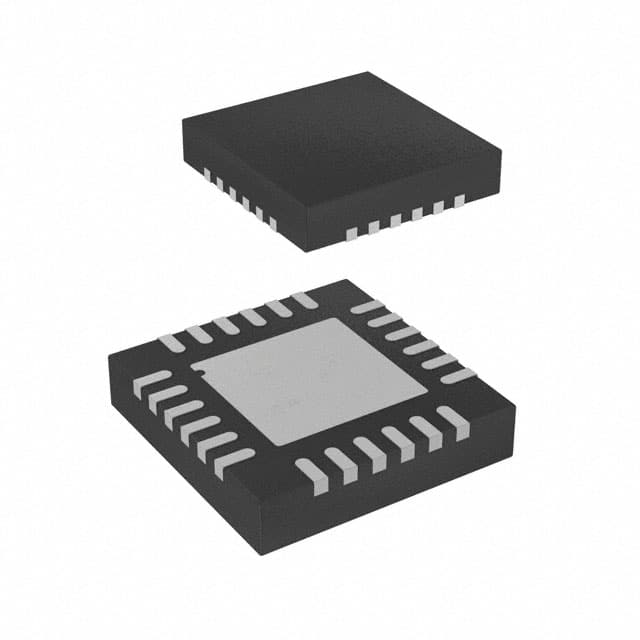

The Renesas Electronics Corporation 9FGL0241CKILF is a PCI Express (PCIe) clock generator designed for high-performance applications. This single-circuit device features a 1:2 ratio for input-to-output frequency conversion, operating with a maximum frequency of 25MHz. The PLL (Phase-Locked Loop) functionality ensures precise clock generation. Housed in a 24-VFQFPN (4x4) exposed pad package, it is suitable for surface mount applications. The operating temperature range is -40°C to 85°C. This component is commonly utilized in networking, telecommunications, and data center infrastructure. The device requires a supply voltage between 3.135V and 3.465V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 24-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | Clock |
| Frequency - Max | 25MHz |
| Input | Clock |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 3.135V ~ 3.465V |
| Main Purpose | PCI Express (PCIe) |
| Ratio - Input:Output | 1:2 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 24-VFQFPN (4x4) |
| PLL | Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
