9DBV0941AKLFT
VFQFPN 6.00X6.00X0.90 MM, 0.40MMManufacturer: Renesas Electronics Corporation
Categories: Application Specific Clock/Timing
Quality Control: Learn More
The Renesas Electronics Corporation 9DBV0941AKLFT is a high-performance Ethernet and PCI Express (PCIe) fanout buffer. This single-circuit device operates with a maximum frequency of 200MHz, supporting HCSL input and LP-HCSL outputs. Featuring a 1:9 ratio for input-to-output distribution, it includes a Phase-Locked Loop (PLL) for precise clock generation. The 9DBV0941AKLFT is housed in a 48-VFQFPN (6x6mm) package with an exposed pad for optimal thermal performance and is supplied on tape and reel. Its input/output capabilities are differential. This component is suitable for applications requiring robust clock distribution for high-speed serial interfaces, commonly found in networking equipment and high-performance computing. The device operates within a voltage supply range of 1.7V to 1.9V and has an operating temperature range of 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

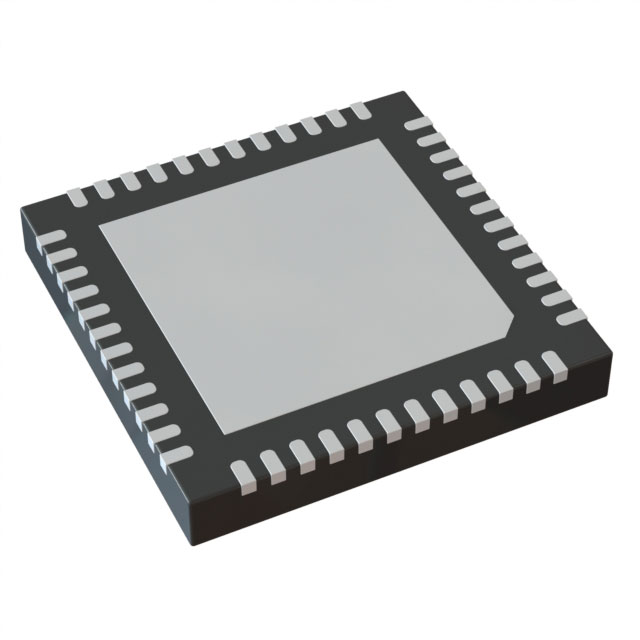

| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | LP-HCSL |
| Frequency - Max | 200MHz |
| Input | HCSL |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 1.7V ~ 1.9V |
| Main Purpose | Ethernet, PCI Express (PCIe) |
| Ratio - Input:Output | 1:9 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 48-VFQFPN (6x6) |
| PLL | Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
