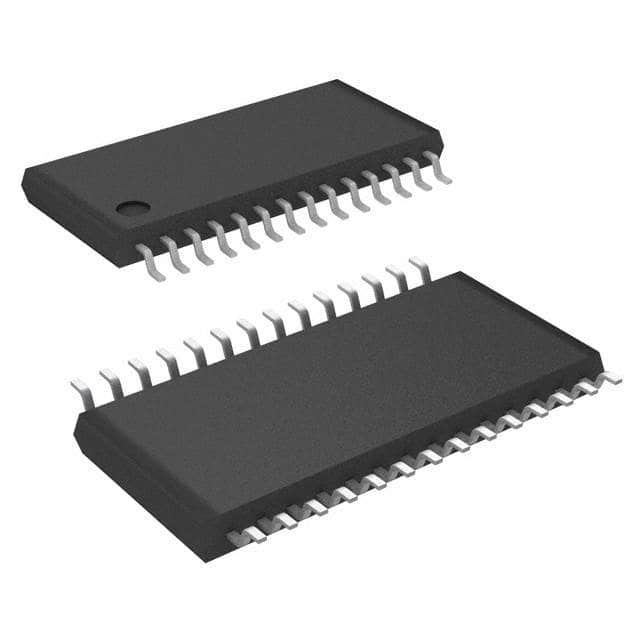

9DB401CGLF
IC BUFFER 4OUTPUT DIFF 28-TSSOPManufacturer: Renesas Electronics Corporation
Categories: Application Specific Clock/Timing
Quality Control: Learn More
Renesas Electronics Corporation 9DB401CGLF is a PCIe fanout buffer designed for high-speed clock distribution. This zero-delay buffer features a single input driving four differential outputs, operating at frequencies up to 400MHz. The device supports HCSL input and HCSL/LVDS outputs, making it suitable for demanding clocking applications. Its architecture includes a Phase-Locked Loop (PLL) for precise timing control. The 9DB401CGLF is housed in a 28-TSSOP package, intended for surface mounting. This component finds application in systems utilizing PCI Express interfaces, commonly seen in networking, computing, and industrial automation sectors. The operating voltage range is 3.135V to 3.465V, with an operating temperature range of 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Output | HCSL, LVDS |
| Frequency - Max | 400MHz |
| Input | HCSL |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Main Purpose | PCI Express (PCIe) |
| Ratio - Input:Output | 1:4 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 28-TSSOP |
| PLL | Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
