9DB1233AGLF

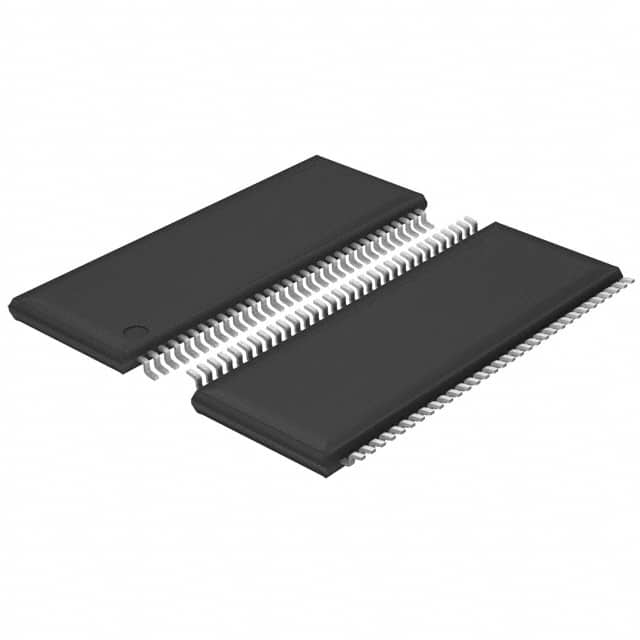

IC CLK FANOUT/BUFF ZD 64TSSOPManufacturer: Renesas Electronics Corporation
Categories: Application Specific Clock/Timing
Quality Control: Learn More
Renesas Electronics Corporation 9DB1233AGLF is a Zero Delay Buffer designed for PCI Express (PCIe) clock distribution. This multiplexer IC operates at a maximum frequency of 166MHz, providing a 1:12 ratio for input to output clocking. It features 12 HCSL outputs, ensuring precise clock synchronization for high-speed interfaces. The device incorporates a Phase-Locked Loop (PLL) to minimize clock jitter and maintain signal integrity.
The 9DB1233AGLF is housed in a 64-TSSOP (0.240", 6.10mm Width) surface-mount package, suitable for space-constrained applications. Its differential input/output capabilities facilitate robust clock transmission. This component is commonly employed in networking infrastructure, data centers, and high-performance computing systems where reliable and low-skew clocking is critical. The operating temperature range is from 0°C to 70°C, with a supply voltage requirement of 3.135V to 3.465V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 64-TFSOP (0.240"", 6.10mm Width) |
| Mounting Type | Surface Mount |
| Output | HCSL |
| Frequency - Max | 166MHz |
| Input | Clock |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Main Purpose | PCI Express (PCIe) |
| Ratio - Input:Output | 1:12 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 64-TSSOP |
| PLL | Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
