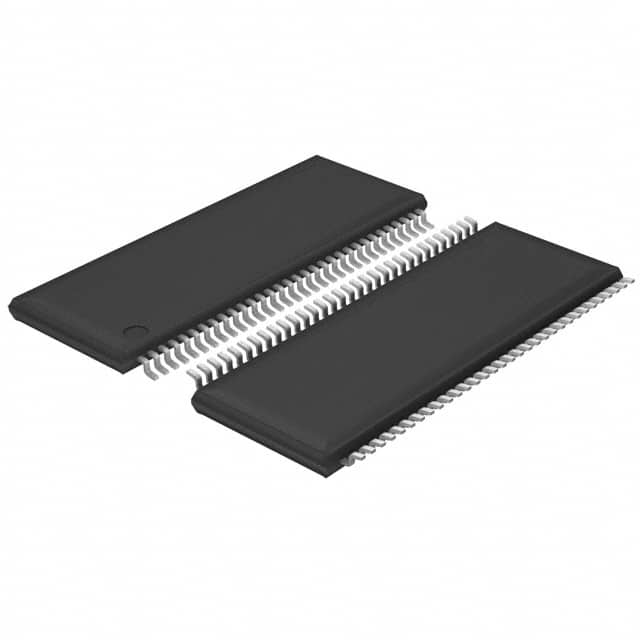

9DB1200CGLFT
IC BUFFER 12OUTPUT DIFF 64-TSSOPManufacturer: Renesas Electronics Corporation
Categories: Application Specific Clock/Timing
Quality Control: Learn More
Renesas Electronics Corporation 9DB1200CGLFT is a PCI Express (PCIe) clock buffer and driver designed for high-speed system clock generation. This 64-TSSOP packaged device features a PLL and supports a maximum frequency of 400MHz. It accepts a differential clock input and provides 12 differential HCSL outputs with a 1:12 ratio. The 9DB1200CGLFT is suitable for surface mount applications within an operating temperature range of 0°C to 70°C, requiring a supply voltage between 3.135V and 3.465V. This component is commonly utilized in networking, telecommunications, and computing infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-TFSOP (0.240"", 6.10mm Width) |
| Mounting Type | Surface Mount |
| Output | HCSL |
| Frequency - Max | 400MHz |
| Input | Clock |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Main Purpose | PCI Express (PCIe) |
| Ratio - Input:Output | 1:12 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 64-TSSOP |
| PLL | Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
