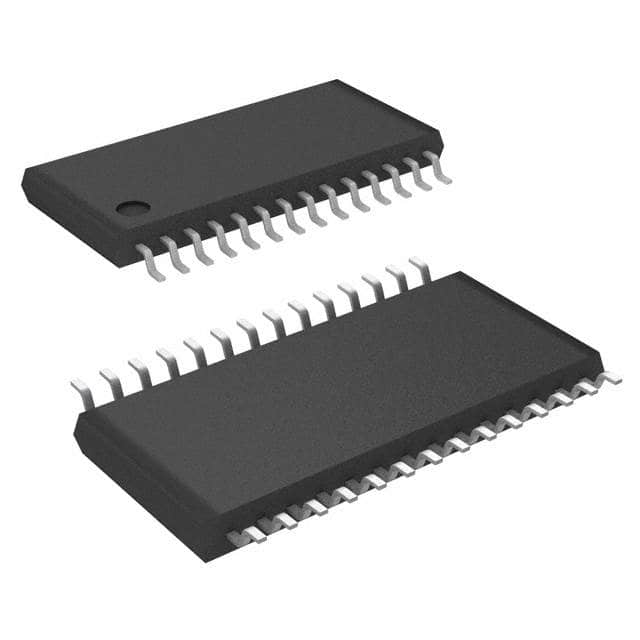

9DB104BGLF
IC BUFFER 4OUTPUT DIFF 28-TSSOPManufacturer: Renesas Electronics Corporation
Categories: Application Specific Clock/Timing
Quality Control: Learn More
Renesas Electronics Corporation 9DB104BGLF is a PCI Express (PCIe) clock buffer designed for high-performance timing distribution. This component features a 1:4 ratio for input to output, providing four differential clock outputs from a single differential input. Operating at a maximum frequency of 220MHz, it ensures robust signal integrity for demanding applications. The 9DB104BGLF is housed in a 28-TSSOP surface-mount package. Its primary function is to generate and distribute precise PCIe clocks. This device is well-suited for use in computing, networking infrastructure, and telecommunications equipment where reliable clocking is critical for system stability and performance. The operating temperature range is 0°C to 70°C, and it operates from a supply voltage of 3.135V to 3.465V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Output | Clock |
| Frequency - Max | 220MHz |
| Input | Clock |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Main Purpose | PCI Express (PCIe) |
| Ratio - Input:Output | 1:4 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 28-TSSOP |
| PLL | Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
