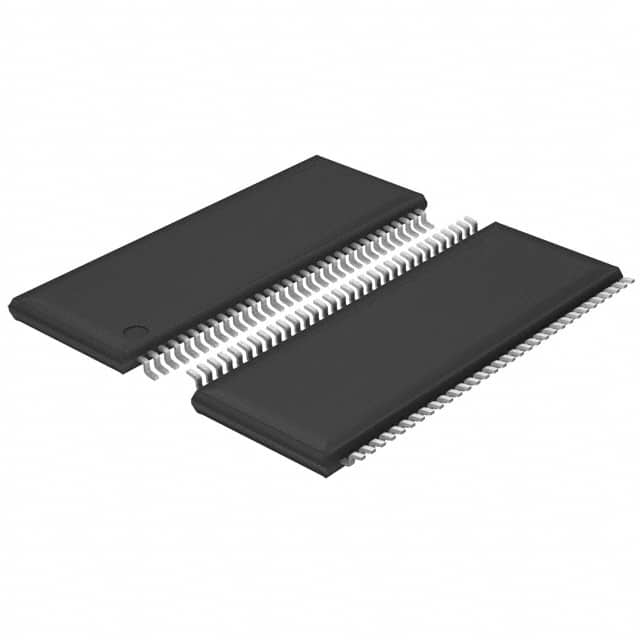

932SQL456AGLF
IC CLOCK SYNTHESIZER 64TSSOPManufacturer: Renesas Electronics Corporation
Categories: Application Specific Clock/Timing
Quality Control: Learn More
Renesas Electronics Corporation 932SQL456AGLF is a PCI Express (PCIe) clock synthesizer IC operating at a maximum frequency of 100MHz. This component features one output and utilizes LP-HCSL signaling. The device accepts a crystal input and incorporates a Phase-Locked Loop (PLL) for precise clock generation. Its input-to-output ratio is 1:19. The 932SQL456AGLF is housed in a 64-TSSOP package, designed for surface mounting. Operating within a temperature range of 0°C to 70°C, this component is suitable for applications requiring robust PCIe clocking solutions, commonly found in computing, networking, and communications infrastructure. The supply voltage range is 3.135V to 3.465V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 64-TFSOP (0.240"", 6.10mm Width) |
| Mounting Type | Surface Mount |
| Output | LP-HCSL |
| Frequency - Max | 100MHz |
| Input | Crystal |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 3.135V ~ 3.465V |
| Main Purpose | PCI Express (PCIe) |
| Ratio - Input:Output | 1:19 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 64-TSSOP |
| PLL | Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
