932SQ426AKLF
VFQFPN 9.00X9.00X0.90 MM, 0.50MMManufacturer: Renesas Electronics Corporation
Categories: Application Specific Clock/Timing
Quality Control: Learn More

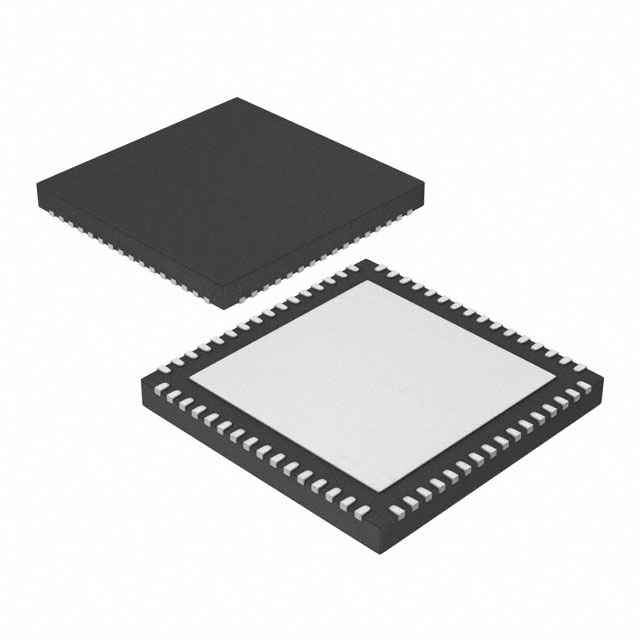

Renesas Electronics Corporation 932SQ426AKLF is a single-circuit PCI Express clock generator. This component operates with a maximum frequency of 100MHz, utilizing a crystal input and delivering five HCSL outputs. The device features a PLL for precise clock generation and is housed in a 64-VFQFPN (9x9) package with an exposed pad for enhanced thermal performance. With a supply voltage range of 3.135V to 3.465V, it is suitable for surface mount applications. The 932SQ426AKLF is commonly employed in networking, telecommunications, and computing systems requiring high-speed clocking solutions for PCI Express interfaces. It is supplied in trays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | HCSL |
| Frequency - Max | 100MHz |
| Input | Crystal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Main Purpose | PCI Express (PCIe) |
| Ratio - Input:Output | 1:5 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 64-VFQFPN (9x9) |
| PLL | Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
