8V54816ANLG
NETWORK TIMINGManufacturer: Renesas Electronics Corporation
Categories: Application Specific Clock/Timing
Quality Control: Learn More

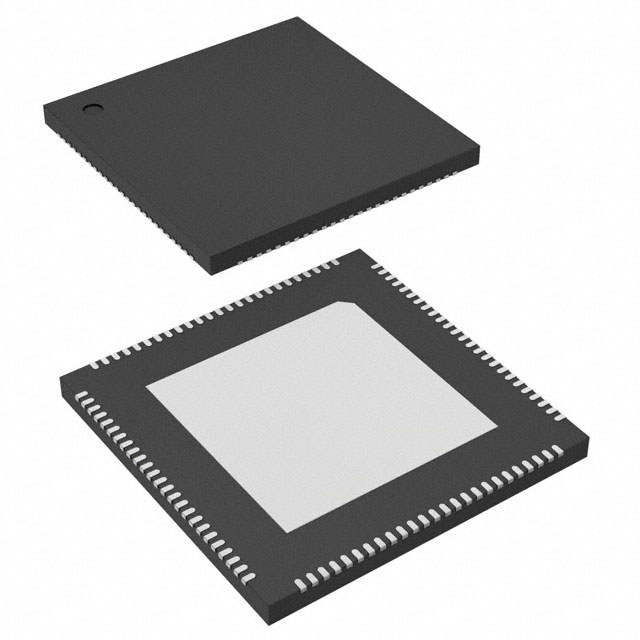

The Renesas Electronics Corporation 8V54816ANLG is a high-performance clock generator for PCI Express (PCIe) infrastructure. This electronic component features a maximum frequency of 350MHz and offers 16 differential LVDS inputs and 16 differential LVDS outputs. The device incorporates a Phase-Locked Loop (PLL) to ensure precise clock distribution and signal integrity. Designed for surface mounting, the 8V54816ANLG is housed in a 100-VFQFPN (12x12) package with an exposed pad. Its operating temperature range is 0°C to 70°C, and it requires a supply voltage between 3.135V and 3.465V. This component is suitable for applications in networking and telecommunications equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | LVDS |
| Frequency - Max | 350MHz |
| Input | LVDS |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Main Purpose | PCI Express (PCIe) |
| Ratio - Input:Output | 16:16 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 100-VFQFPN\xa0(12x12) |
| PLL | Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
