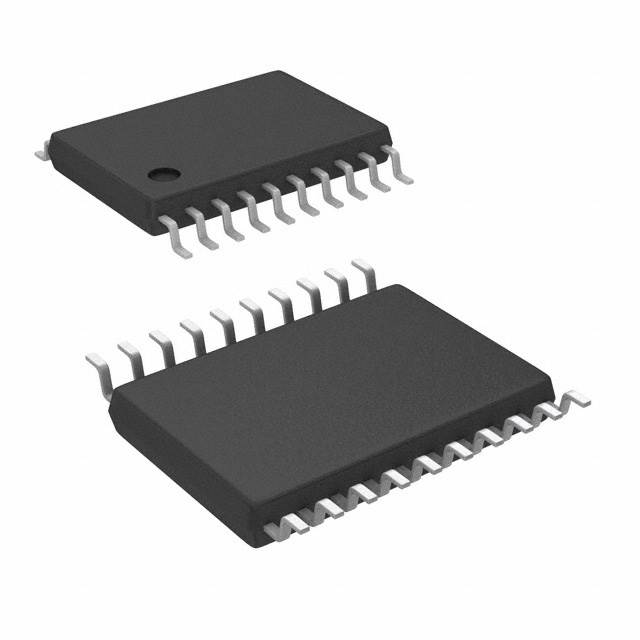

874002AGLF
IC JITTER ATTENUATOR 20-TSSOPManufacturer: Renesas Electronics Corporation
Categories: Application Specific Clock/Timing
Quality Control: Learn More
Renesas Electronics Corporation's 874002AGLF is a high-performance PCI Express (PCIe) fanout buffer designed for jitter attenuation and signal distribution. This electronic component operates at a maximum frequency of 160MHz and features a 1:2 ratio for input to output signals. It supports a wide range of differential input standards including HCSL, LVDS, LVHSTL, LVPECL, and SSTL, with a single LVDS output. The 874002AGLF includes an integrated PLL for precise clock control. Packaged in a 20-TSSOP surface-mount configuration, it is suitable for applications requiring robust clock management in systems such as servers, networking equipment, and high-speed computing platforms. The device operates within a voltage range of 3.135V to 3.465V and has an operating temperature range of 0°C to 70°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Output | LVDS |
| Frequency - Max | 160MHz |
| Input | HCSL, LVDS, LVHSTL, LVPECL, SSTL |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Main Purpose | PCI Express (PCIe) |
| Ratio - Input:Output | 1:2 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 20-TSSOP |
| PLL | Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
