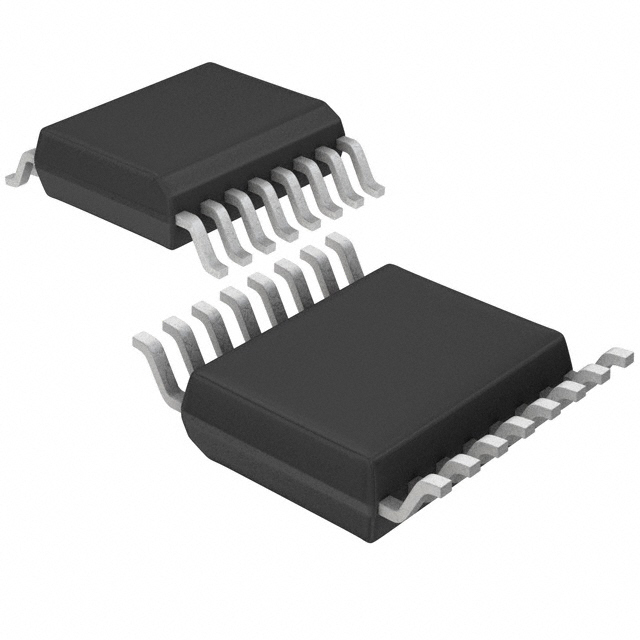

5V41068APGGI8
IC CLK MUX PCIE 2 TO 1 16TSSOPManufacturer: Renesas Electronics Corporation
Categories: Application Specific Clock/Timing
Quality Control: Learn More
The Renesas Electronics Corporation 5V41068APGGI8 is a PCIe Gen 1/2/3 clock buffer designed for high-speed serial data transmission. This 2:1 multiplexer features two HCSL inputs and one HCSL/LVDS output, capable of operating at frequencies up to 200MHz. The device is optimized for PCIe clock distribution, ensuring signal integrity and jitter performance crucial for applications in enterprise networking, data centers, and industrial automation. Its 16-TSSOP package facilitates surface-mount assembly. Operating within a 3.135V to 3.465V supply range and an extended temperature range of -40°C to 85°C, the 5V41068APGGI8 provides robust clocking solutions for demanding environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Output | HCSL, LVDS |
| Frequency - Max | 200MHz |
| Input | HCSL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Main Purpose | PCI Express (PCIe) |
| Ratio - Input:Output | 2:1 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 16-TSSOP |
| PLL | No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
