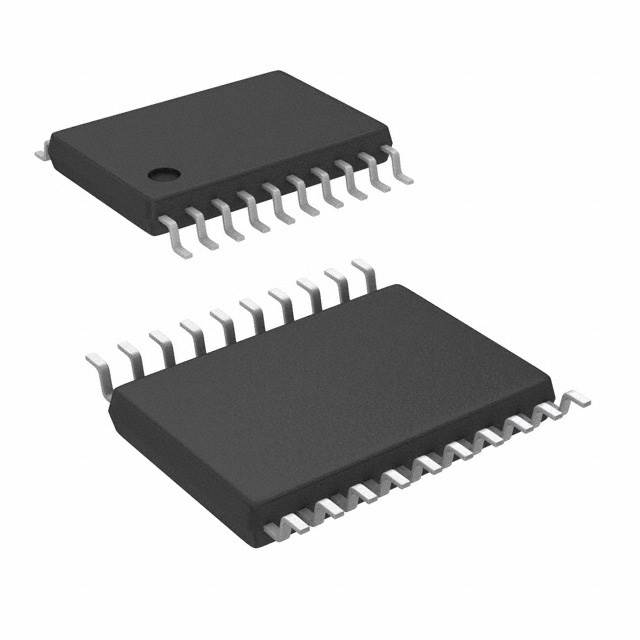

5V41067APGGI
IC CLK MUX PCIE 2 TO 4 20TSSOPManufacturer: Renesas Electronics Corporation
Categories: Application Specific Clock/Timing
Quality Control: Learn More
The Renesas Electronics Corporation 5V41067APGGI is a PCIe clock multiplier designed for high-speed serial communication interfaces. This electronic component provides a 2:4 input-to-output ratio, delivering up to 200MHz clock frequencies. It supports both HCSL and LVDS output signaling, ensuring compatibility with a wide range of PCIe implementations. The 5V41067APGGI features a single circuit and a 20-TSSOP (0.173", 4.40mm Width) surface mount package. Operating within a 3.135V to 3.465V supply voltage range and an ambient temperature of -40°C to 85°C, this device is suitable for applications in networking, telecommunications, and data center infrastructure where reliable PCIe clocking is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Output | HCSL, LVDS |
| Frequency - Max | 200MHz |
| Input | HCSL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Main Purpose | PCI Express (PCIe) |
| Ratio - Input:Output | 2:4 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 20-TSSOP |
| PLL | No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
