KAD5512P-25Q48
IC ADC 12BIT SAR 48QFNManufacturer: Renesas Electronics Corporation
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

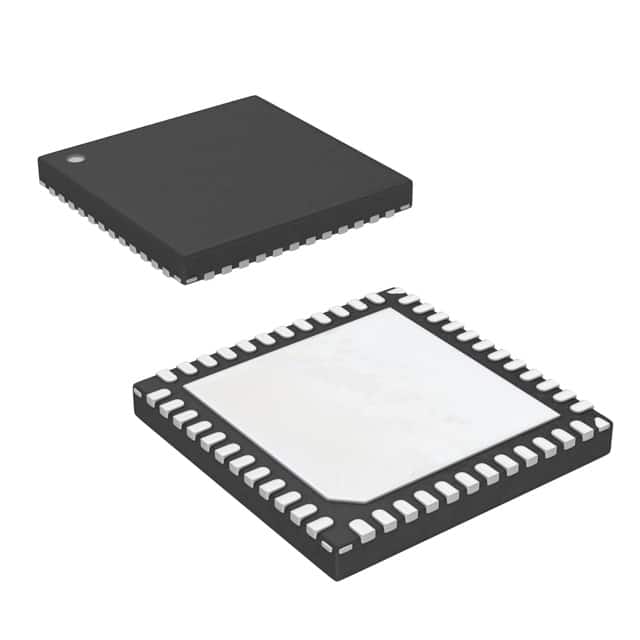

Renesas Electronics Corporation KAD5512P-25Q48 is a 12-bit Analog to Digital Converter featuring a Successive Approximation Register (SAR) architecture. This component offers a single differential input and a 1:1 S/H:ADC ratio. The KAD5512P-25Q48 is supplied in a 48-QFN (7x7) package for surface mounting. It operates with analog and digital supply voltages between 1.7V and 1.9V, and supports a sampling rate of up to 250 MSPS. The data interface includes LVDS and parallel options. This device is suitable for applications requiring high-speed data acquisition in areas such as telecommunications and test and measurement equipment. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, Parallel |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 250M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 48-QFN (7x7) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
