KAD5512P-21Q48
IC ADC 12BIT SAR 48QFNManufacturer: Renesas Electronics Corporation
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Renesas Electronics Corporation KAD5512P-21Q48 is a 12-bit Analog-to-Digital Converter (ADC) featuring a Successive Approximation Register (SAR) architecture. This single-channel device offers a sampling rate of up to 210 MSPS, ideal for applications demanding high-speed data acquisition. The KAD5512P-21Q48 supports differential inputs and provides data output via parallel LVDS interfaces. Its 1.7V to 1.9V analog and digital supply voltage range, coupled with an internal voltage reference, simplifies system design. Packaged in a 48-QFN (7x7) exposed pad, this component is designed for surface mounting and operates across a temperature range of -40°C to 85°C. It finds utility in high-performance signal processing, communications infrastructure, and advanced test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |

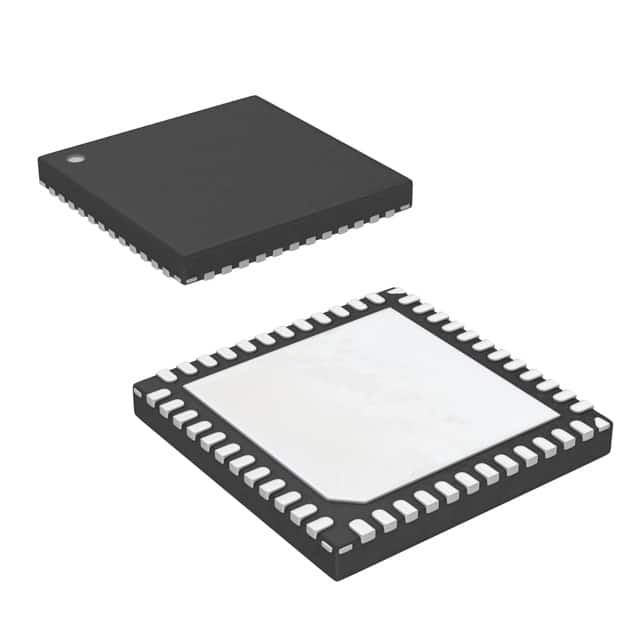

| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, Parallel |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 210M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 48-QFN (7x7) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
