KAD5512P-12Q48
IC ADC 12BIT SAR 48QFNManufacturer: Renesas Electronics Corporation
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

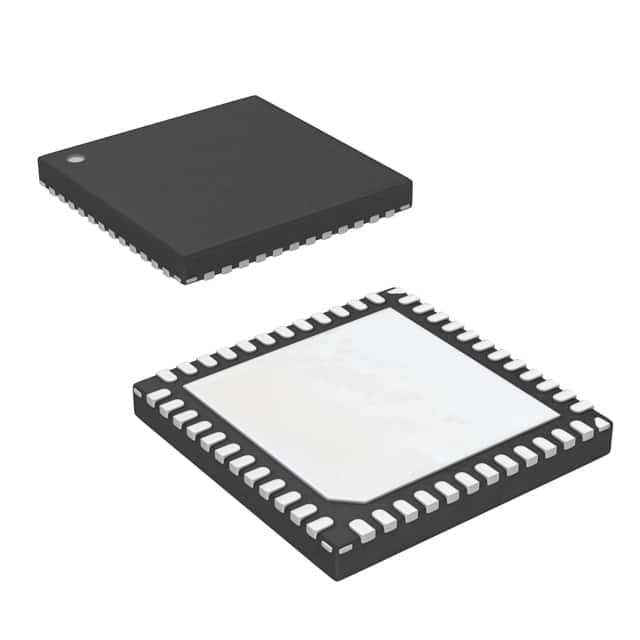

Renesas Electronics Corporation's KAD5512P-12Q48 is a 12-bit, 125 MSPS successive approximation register (SAR) Analog-to-Digital Converter (ADC). This device features a single differential input and a 1:1 S/H-ADC ratio. The KAD5512P-12Q48 is supplied in a 48-QFN (7x7) package, designed for surface mount applications. It operates with analog and digital supply voltages ranging from 1.7V to 1.9V and offers an operating temperature range of -40°C to 85°C. Data is output via a parallel interface. This component is suitable for applications in wireless communications and high-speed data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, Parallel |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 125M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 48-QFN (7x7) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
