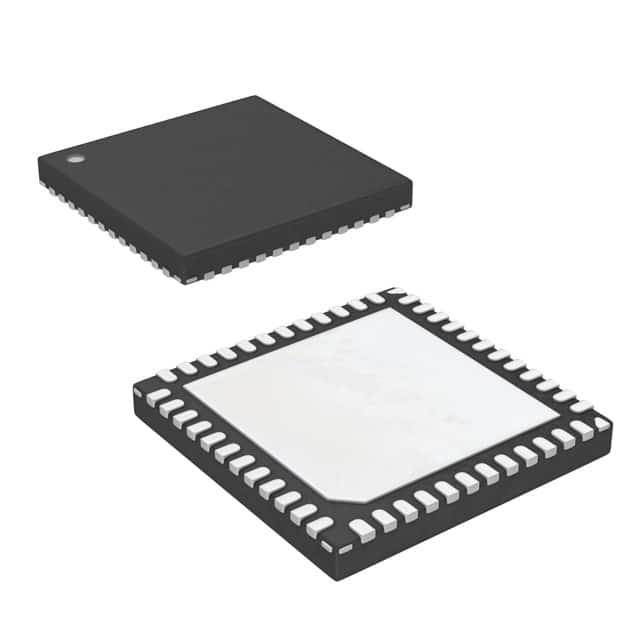

KAD5512HP-21Q48
IC ADC 12BIT SAR 48QFNManufacturer: Renesas Electronics Corporation
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Renesas Electronics Corporation KAD5512HP-21Q48 is a 12-bit Successive Approximation Register (SAR) Analog-to-Digital Converter (ADC). This component offers a single input channel with a differential input type and a sampling rate of up to 210 Msps. It features an internal voltage reference and a 1:1 S/H-ADC ratio. The KAD5512HP-21Q48 provides both LVDS and parallel data interfaces for flexible system integration. Operating within an analog and digital supply voltage range of 1.7V to 1.9V, it is designed for surface mounting and comes in a 48-QFN (7x7) package. This ADC is suitable for applications requiring high-speed data acquisition in sectors such as telecommunications, medical imaging, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, Parallel |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 210M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 48-QFN (7x7) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
