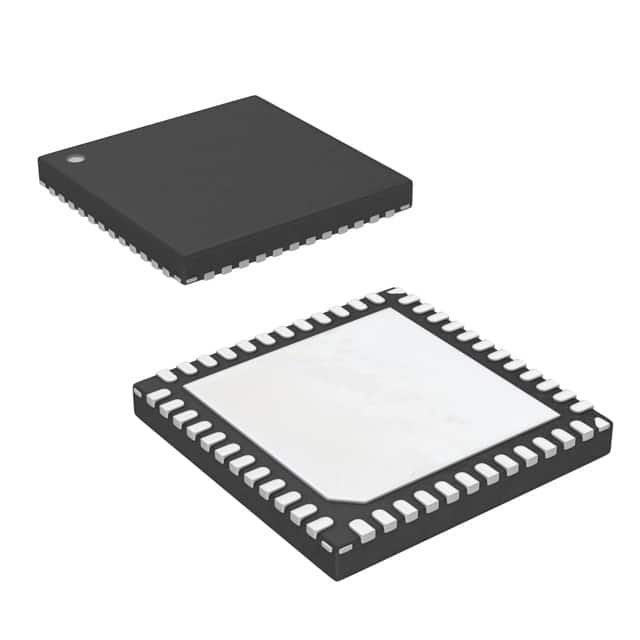

KAD5512HP-17Q48
IC ADC 12BIT SAR 48QFNManufacturer: Renesas Electronics Corporation
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Renesas Electronics Corporation's KAD5512HP-17Q48 is a 12-bit SAR Analog to Digital Converter. This component features a single input channel with a sampling rate of up to 170MSPS. The device operates with analog and digital supply voltages between 1.7V and 1.9V. Packaged in a 48-QFN (7x7) surface-mount configuration, it is suitable for applications requiring high-speed data acquisition. The KAD5512HP-17Q48 offers an internal reference and supports both LVDS and parallel data interfaces. Its design caters to demanding applications in sectors such as telecommunications and test and measurement. The component is supplied in trays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, Parallel |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 170M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 48-QFN (7x7) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
