KAD5510P-21Q48
IC ADC 10BIT SAR 48QFNManufacturer: Renesas Electronics Corporation
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Renesas Electronics Corporation KAD5510P-21Q48 is a 10-bit Analog-to-Digital Converter (ADC) with a sampling rate of 210 MSPS. This device features a Successive Approximation Register (SAR) architecture and a single-channel input. The KAD5510P-21Q48 offers a 1:1 S/H-ADC ratio and utilizes an internal reference. Data is output via parallel and LVDS interfaces. The component is housed in a 48-QFN (7x7) package and supports surface mount installation. Operating across a temperature range of -40°C to 85°C, it requires analog and digital supply voltages between 1.7V and 1.9V. This ADC is suitable for applications in high-speed data acquisition, communications infrastructure, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |

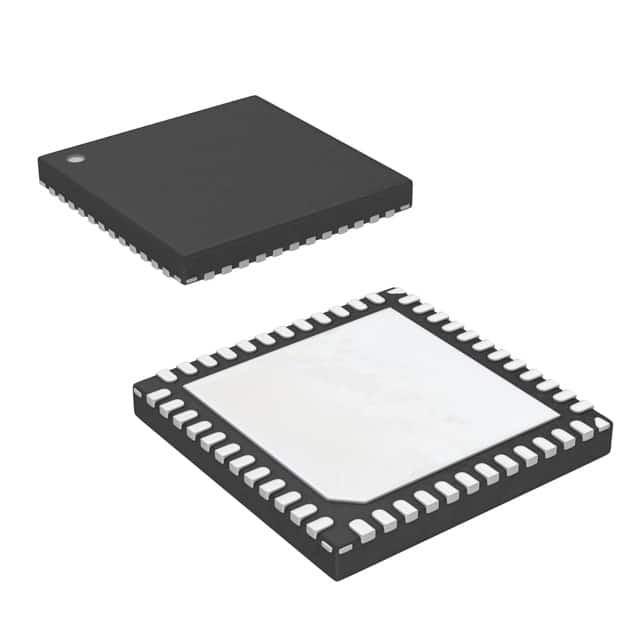

| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, Parallel |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 210M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 48-QFN (7x7) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
