KAD5510P-17Q48
IC ADC 10BIT SAR 48QFNManufacturer: Renesas Electronics Corporation
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Renesas Electronics Corporation KAD5510P-17Q48 is a 10-bit Successive Approximation Register (SAR) Analog-to-Digital Converter (ADC). This component features a single differential input and a sampling rate of up to 170 MSPS. The KAD5510P-17Q48 utilizes an internal voltage reference and offers both LVDS and parallel data interfaces. Its architecture supports a 1:1 S/H-ADC ratio. Packaged in a 48-QFN (7x7) with an exposed pad, it is designed for surface mounting and operates within an ambient temperature range of -40°C to 85°C. The analog and digital supply voltage range is 1.7V to 1.9V. This device is suitable for high-speed data acquisition in telecommunications and test and measurement applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |

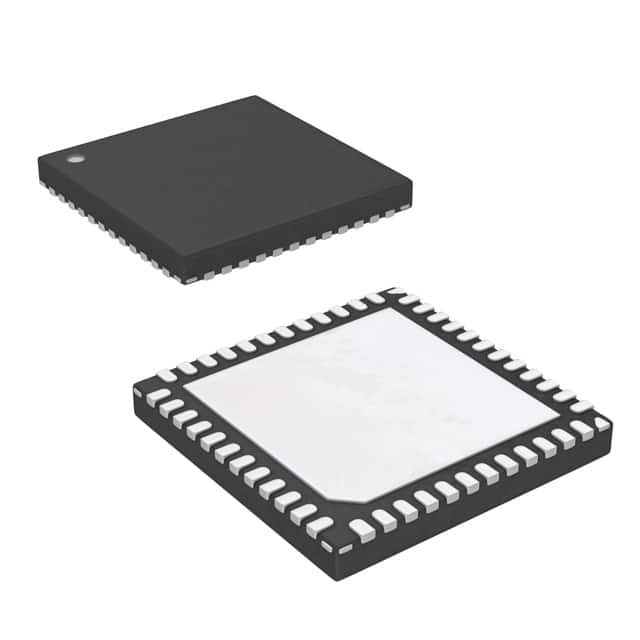

| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, Parallel |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 170M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 48-QFN (7x7) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
